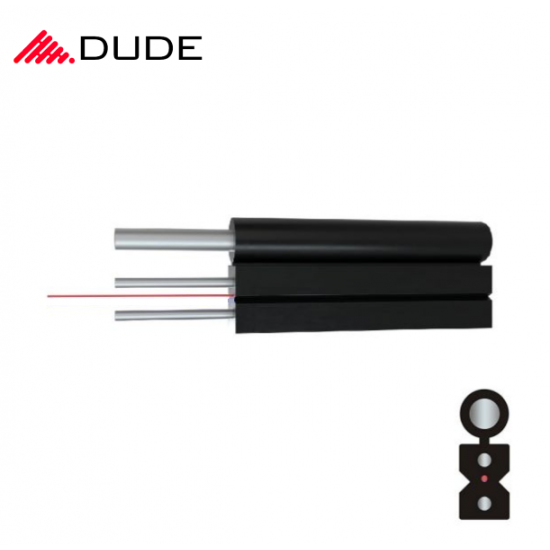

DUDE FTTH UMM 1F G657 A2

DUDE FTTH UMM 1F G657 A2
DUDE FTTH UMM 1F G657 A2
DUDE FTTH UMM 1F G657 A2
DUDE FTTH UMM 1F G657 A2
DUDE FTTH UMM 1F G657 A2
  • Model: 1FG657

DUDE FTTH UMM Fiber Optic Cables: Remote and Peripheral Power Elements - metal wires

- for building broadband FTTH access networks "fiber to the home"

- for indoor and outdoor laying

- for suspension on supports of overhead communication lines, urban electric transport, between buildings and structures.


Advantages of DUDE FTTH UMM cable:


- high performance characteristics: thin and light, flexible, with a small bending radius

- easy to cut and assemble

- designed for both indoor and outdoor installation

- self-supporting structure


Features of the use of optical fibers in FTTx networks

For more than 10 years, the relative amount of information transmitted by copper cables has been steadily decreasing. Traditional wired solutions are gradually being replaced by modern wireless and optical technologies, providing end-users with greater flexibility, mobility and speed of information exchange.


Technical and operational characteristics of DUDE FTTH UMM 1F G657 A2 cable

Geometric dimensions, mm

5,3 x 2,0

Cable weight, kg / km

20

Maximum tensile force (short-term), kN

1,0

Minimum bending radius, mm

20 cable diameters

Permissible crushing force, no more, N / mm

500

Operating temperature range, ° С

-40°С - +60°С

Storage temperature range, ° С

-20°С - +60°С

Installation temperature range, ° С

- 10°С - +60°С

Maximum span length, m

40

Construction length, km

1,5
