MikroTik LHG HP5 (RBLHG-5HPnD)
- Model: RBLHG-5HPnD
- UPC: 70874743439
- EAN: 708747434392
MikroTik LHG HP5 (RBLHG-5HPnD)
MikroTik LHG HP5 - Dual chain High Power 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna

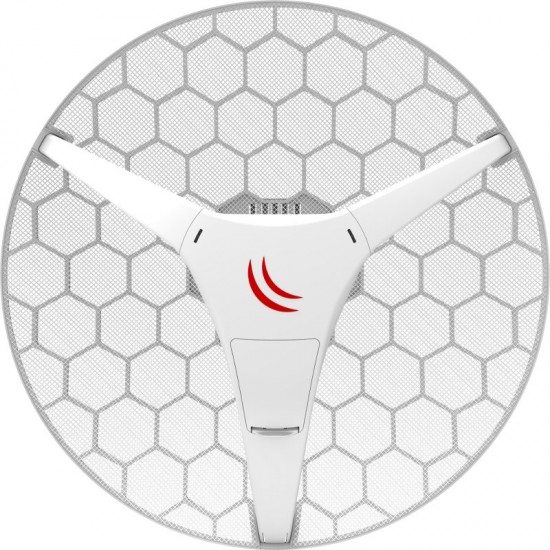

The LHG HP5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5 - and up to 630mW, and is designed to reach up to 60% longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
| Specifications | |
| 10/100 Ethernet ports | 1 |
| Antenna gain dBi for 5 GHz: | 24.5 |
| CPU: | AR9344 |
| Dimensions: | Ø 391 x 222 mm; |
| Tested ambient temperature: | -40°C to 70°C |
| Architecture: | MIPSBE |
| CPU core count: | 1 |
| CPU nominal frequency: | 600 MHz |
| Size of RAM: | 64 MB |
| Storage size: | 16 MB |
| Storage type: | FLASH |
| License level: | RouterOS license 3 |
| Operating System: | RouterOS |
| MTBF | Approximately 100'000 hours at 25C |
| Wireless | |
| Wireless 5 GHz chip model: | AR9344 |
| Wireless 5 GHz generation: | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz standarts: | 802.11a/n |
| Wireless 5 GHz Number of chains: | 2 |
| Powering | |
| Max power consumption: | 7 W |
| PoE in: | Passive PoE |
| Number of DC inputs: | 1 (PoE-IN) |
| PoE in input Voltage: | 10-28 V |
| Certification & Approvals | |
| Certifications | CE, FCC, IC, EAC, ROHS |
