MikroTik LHG XL 5 ac (RBLHGG-5acD-XL)

The LHG XL 5 ac is Long Range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The device includes one 10/100/1000 Mbps Ethernet port to take full advantage of the speed provided by the 802.11ac protocol.

It is used to connect to the provider's base station as a client or create Wi-Fi bridges up to 25 km.

Main characteristics Working frequency: 5GHz Wi-Fi channel speed: 866 Mbps Max. output power: 25 dBm (316 mW) Lan port: 1 × 1Gbps Antenna Gain: 27 dBi Directional pattern: 7 °

We recommend using MikroTik LHG XL 5 ac as a Wi-Fi bridge at a distance of up to 25 km. The maximum speed will be provided at a distance of up to 7 km.

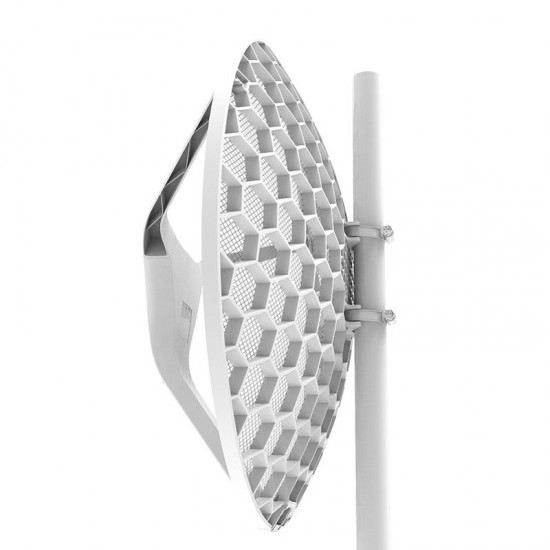

The antenna has a light weight and mesh structure, therefore it resists wind loads well. The antenna tilt angle is adjustable within 5 ° using the supplied metal plate.

If you need to mount the antenna to the wall of a building, we recommend purchasing a UB-AM mount.

​

The Wi-Fi hotspot is designed for outdoor use at temperatures ranging from -40 ° C to + 70 ° C.

Power is supplied to the device via a network cable using a PoE injector, which is included in the package.

Buy MikroTik LHG XL 5 ac (model RBLHGG-5acD-XL) will be an excellent option for building long-range Wi-Fi bridges up to 25 km.

Specifications

Powering

Wireless specifications

Ethernet

Certification & Approvals

Wireless specifications

Included parts

•
  24V 0.38A power adapter
•
  Metal rings (two)
•
  Gigabit PoE injector
•
  K-LHG kit
