MikroTik CRS312-4C+8XG-RM (CRS312-4C+8XG-RM)

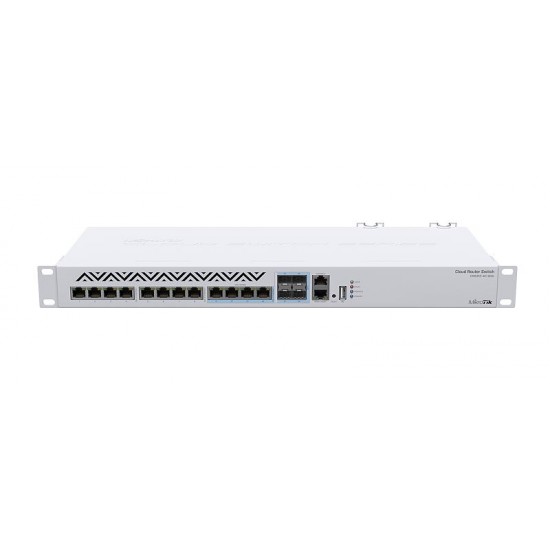

MikroTik CRS312-4C+8XG-RM — it is a managed Layer 3 switch with the following ports:

• 8 Ethernet ports with a speed of 1G / 2.5G / 5G / 10G;
• 4 combo 10G Ethernet / SFP + ports (1.25G SFP and 10G SFP + modules are supported);
• 1 COM port in RJ-45 format for service;
• 1 Ethernet port 100 Mbps for management;
• 1 full-size USB port for connecting 3G / 4G modems or external drives.

Eliminate your network weakness - it's time to upgrade your gigabit switches to something really fast!

Introducing the CRS312-4C + 8XG-RM, our first 10G RJ45 switch.

What's more - there are 4 x 10G combo ports that can be used for 10G RJ45 Ethernet or 10G SFP + when an additional fiber optic connection is needed. These ports support software select function - when

using RouterOS scripts, you can choose which ports to use at a particular moment.

MikroTik CRS312-4C + 8XG-RM switch is a simple and practical solution for those who work with large amounts of data and need a fast, stable connection 24/7 - for the production of multimedia content and games, scientific research and much more.

Two power supplies for reliability - no unexpected interruptions when deadlines are tight!

This switch has a full-size USB port, a console port for configuration, and a 1U rack-mount case for all standard racks.

The "dual boot" function allows you to choose one of two operating systems - the legendary RouterOS

with many possibilities or simpler but also powerful SwOS. For routing and others

functions of the 3rd level use RouterOS.

Non-blocking bandwidth - 120 Gbps, bandwidth - 240 Gbps, speed

switching matrix - 178 Mpps.

MikroTik CRS312-4C + 8XG-RM - made for professionals, but suitable for everyone!

Performance MikroTik CRS312-4C+8XG-RM:

- Total Non-Blocking throughput: 120 Gbps

- Switching capacity: 240 Gbps

- Forwarding rate: 178 Gbps

A combo port is a software interface that combines two physical interfaces: an Ethernet port and an optical SFP + port. It allows for twisted pair or fiber optic connections. Only one of the combo port interfaces can be used at a time: Ethernet or SFP +.

The switch is a practical solution for those who work with huge data files and need a fast, capable 24/7 connection: multimedia production, scientific research, game development, big data analytics and so on.

The CRS312-4C + 8XG-RM has a dual power supply for redundancy - no unexpected downtime when deadlines approach. You can choose between the feature-rich RouterOS to download, or the simpler yet powerful SwOS. If you need the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

Combo ports are grouped as follows:

• Combo 1: Ethernet 1T и SFP+ 1F
• Combo 2: Ethernet 2T и SFP+ 2F
• Combo 3: Ethernet 3T и SFP+ 3F
• Combo 4: Ethernet 4T и SFP+ 4F

If you connect Ethernet and SFP + to the combo port at the same time, then SFP + will be used by default. In the settings, you can manually specify which port to use.

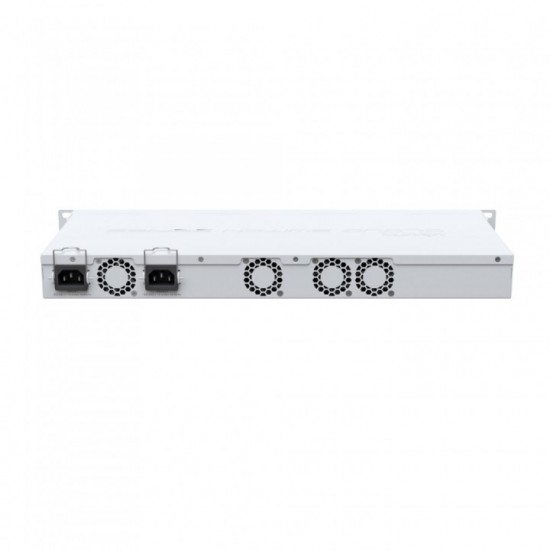

There are two 220V connectors on the back of the case for power redundancy. If one of the lines fails, the device will automatically use the second power line. To cool the device, four coolers with automatic rotation speed control are installed.

The switch supports booting two operating systems: SwitchOS and RouterOS Level 5. If you want to use the device as a simple Layer 2 switch, boot SwitchOS. If you need to use the device as a full-fledged Layer 3 router / switch, then download RouterOS. The RouterOS operating system allows you to limit the speed of users, prohibit torrents and social networks, organize a remote connection to the office via VPN, PPPoE, configure a firewall, Proxy, and much more.

MikroTik CRS312-4C + 8XG-RM is suitable for those who work with huge data files and need high speed: multimedia creation, scientific research, game development, big data analysis and so on.

Equipment

Switch		Two cords nutrition		Mountings		Screws

Characteristics
