MikroTik CRS326-24S+2Q+RM (CRS326-24S+2Q+RM)

MikroTik CRS326-24S+2Q+RM - Our fastest switch for the most demanding setups.

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

MikroTik CRS326-24S+2Q+RM — professional's choice!

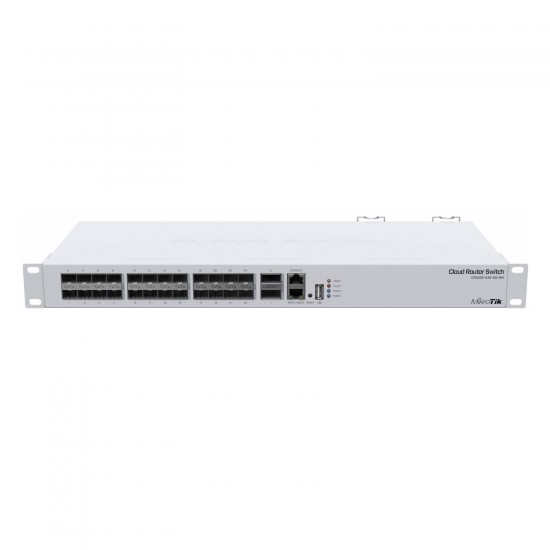

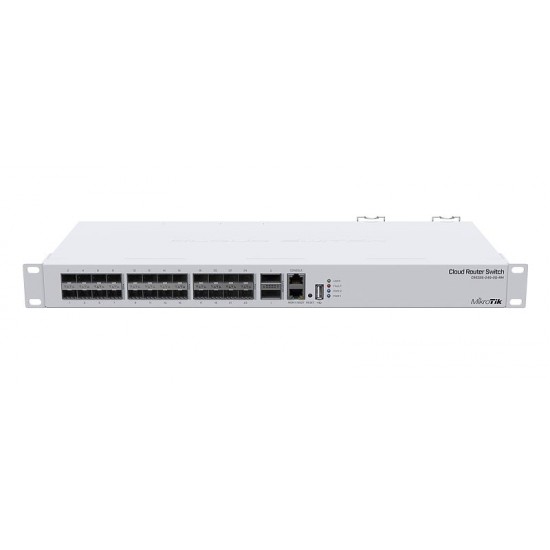

MikroTik CRS326-24S+2Q+RM — it is a managed Layer 3 switch with the following ports:

• 24 10Gbps SFP + optical ports (1.25G SFP and 10G SFP + modules supported);
• 2 optical ports QSFP + with a speed of 40 Gbps (MikroTik Q + DA0001, Q + 85MP01D, Q + BC0003-S + modules are supported);
• 1 COM port in RJ-45 format for service;
• 1 Ethernet port 100 Mbps for management;
• 1 full-size USB port for connecting 3G / 4G modems or external drives.

MikroTik CRS326-24S + 2Q + RM performance:

• Total Non-Blocking throughput: 320 Gbps
• Switching capacity: 640 Gbps
• Forwarding rate: 252 Gbps

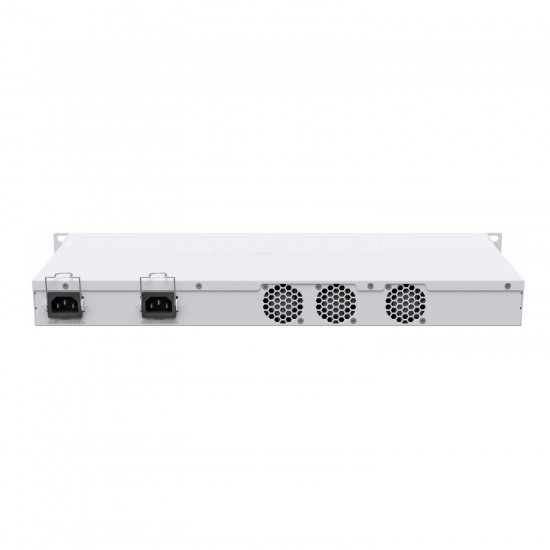

There are two 220V connectors on the back of the case for power redundancy. If one of the lines fails, the device will automatically use the second power line. To cool the device, three coolers with automatic rotation speed control are installed.

The switch supports booting two operating systems: SwitchOS and RouterOS Level 5. If you want to use the device as a simple Layer 2 switch, boot SwitchOS. If you need to use the device as a full-fledged Layer 3 router / switch, then download RouterOS. The RouterOS operating system allows you to limit the speed of users, prohibit torrents and social networks, organize a remote connection to the office via VPN, PPPoE, configure a firewall, Proxy, and much more.

The lug mounts allow the switch to be installed in a 19-inch server rack or cabinet.

MikroTik CRS326-24S + 2Q + RM is suitable for data centers or networks in which large amounts of data are transferred. The switch is equipped with QSFP + ports for fast and stable 40 Gbps fiber connections.

Equipment

Switch		Two cords nutrition		Mountings		Screws

Characteristics
