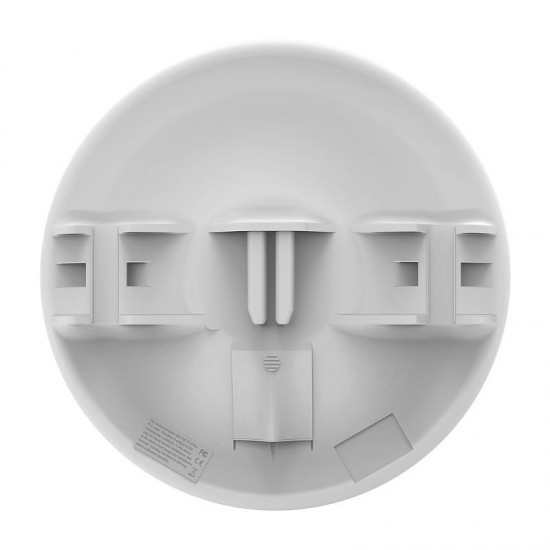

MikroTik DISC Lite5 ac (RBDiscG-5acD)

MikroTik DISC Lite5 ac (RBDiscG-5acD)
MikroTik DISC Lite5 ac (RBDiscG-5acD)
MikroTik DISC Lite5 ac (RBDiscG-5acD)
MikroTik DISC Lite5 ac (RBDiscG-5acD)
MikroTik DISC Lite5 ac (RBDiscG-5acD)
  • Model: RBDiscG-5acD
  • UPC: 70874743509
  • EAN: 708747435092

MikroTik DISC Lite5 ac is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.

DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.

The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.

- DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Included parts

Specifications
Antenna gain dBi for 5 GHz: 21
CPU: IPQ-4018
Dimensions: ⌀ 265mm, height: 80mm
Tested ambient temperature: -40°C to 70°C
Architecture: ARM 32bit
CPU core count: 4
CPU nominal frequency: 716 MHz
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
License level: RouterOS license 3
Operating System: RouterOS
Wireless
Wireless 5 GHz chip model: IPQ-4018
Wireless 5 GHz generation: Wi-Fi 5
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz standarts: 802.11a/n/ac
Wireless 5 GHz Number of chains: 2
Ethernet
10/100/1000 Ethernet ports: 1
Powering
Max power consumption: 7 W
PoE in: Passive PoE
Number of DC inputs: 1 (PoE-IN)
PoE in input Voltage: 10-30 V
Certification & Approvals
Certifications CE, FCC, IC, EAC, ROHS
IP rating IP54
