MikroTik CCR1016-12G (CCR1016-12G)

Cloud Core Router 1016-12G

The wireless demands of an enterprise are very different from those of homes. For one, you need a commercial-grade router that is extremely flexible, scalable, and easy to configure and manage. You also need a wireless networking device that has an excellent range and a very high throughput that is capable of providing stable Internet connection across networks despite moderate to heavy Internet use, such as e-mailing, browsing, streaming, using VOIP telephony, and transferring large data. The Cloud Core Router 1016-12G isn’t the cheapest router out there, but its superior performance makes it one of the most sought after, trusted, and preferred by thousands of enterprise users all over the world.

Plenty of Networking Options

One of the biggest advantages of Cloud Core Router 1016-12G is the myriad of networking schemes you can create. It possesses more than 12 Ethernet ports that are all Gigabit. Moreover, they are directly connected to the core processor, making them extremely fast and super efficient. It has 1 serial port and another for the microUSB. The enterprise-level router is bundled with a 1U rack mount case in case you want to upgrade your wireless network and add more connections in the future.

Unbelievable Speed

The Cloud Core Router 1016-12G is fitted with a 1.2GHz processor with 16 cores, making it absolutely snappy and responsive. It is also able to support a variety of devices that demand a considerable data transfer rate as well as sustain router and network applications with great ease. It is further paired with a 12MB on-chip cache, and 2GB RAM. It supports the TILE GX architecture.

Its efficiency is further boosted by its operating system, which is RouterOS Level 6. It is upgradable to version 7.x without extra cost. It offers unlimited number of tunnels such as OVPN, EoIP, L2TP, and PPTP. You can also configure unlimited number of interfaces for VLAN.

Ultra-fast industrial grade router with advanced brand new 16-core technology. CCR1016 with 16 cores is the best choice when you need performance in millions of packets per second.

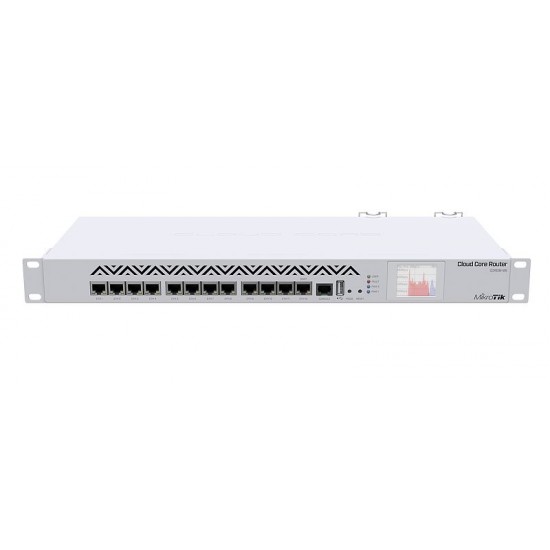

The device comes in a 1U case, has twelve Gigabit Ethernet ports and a USB port. CCR1016-12G has two SODIMM slots, it comes with 2GB of RAM by default, but does not have the memory limit in RouterOS (will accept and use 16GB or more).

Features:

• Tilera network processor - 16 cores @ 1.2 GHz
• Total internal cache size: 12 MB
• Latest TILE GX architecture
• Processing up to 17.8 Mpps / s in Fast path mode (channel speed)
• Up to 12 Gbps throughput when configuring queue / firewall in RouterOS
• 12 Gigabit Ethernet ports
• Ports are connected directly to the processor
• Color LCD touchscreen
• Dual redundant power supplies
• 1U rack mount enclosure

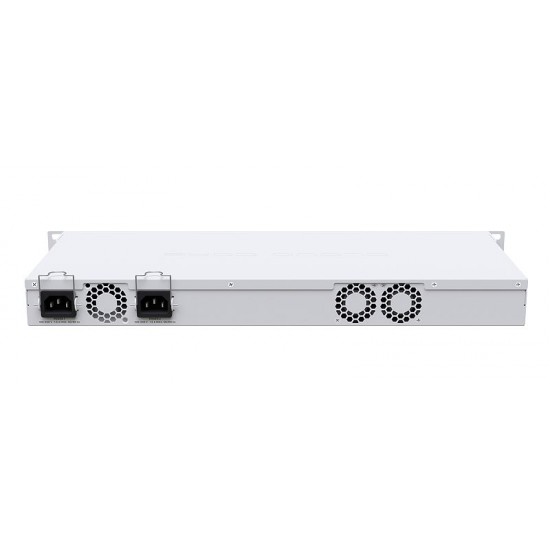

This is the second version of the device. Compared to the previous one, a second power supply unit with a redundancy function has been added. A full-size USB port has appeared.
