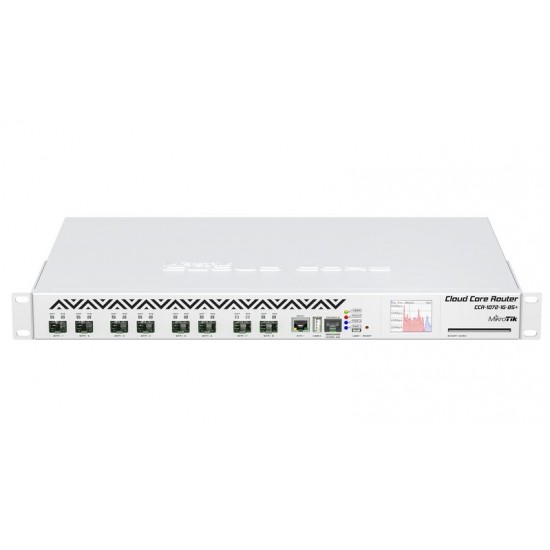

MikroTik CCR1072-1G-8S+ (CCR1072-1G-8S+)

CCR1072-1G-8S+ The MikroTik CCR1072 is a cloud core router running RouterOS which screams on the Tilera 72 core CPU with 16GB ECC RAM. The best MikroTik router to date! The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.

The MikroTik CCR1072 is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, making this a very powerful product. The unit comes equipped with two removable and hot plug power supplies for redundancy, smart card slot, eight 10G SFP+ ports and 16GB of built in ECC RAM. The CCR1072 also has two built-in M.2 slots, microSD and 2x USB for adding storage, to use for proxy cache, user manager and other features. The M.2 slots accept 800mm Key-M x4 PCIe 2.0 modules.

Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 100 million packets per second throughput.

Product Features:

• Features microSD and 2 x M.2 slots
• 1U rack mount case
• 8 x 10G SFP+ ports
• Color touchscreen LCD
• Ports directly connected to CPU

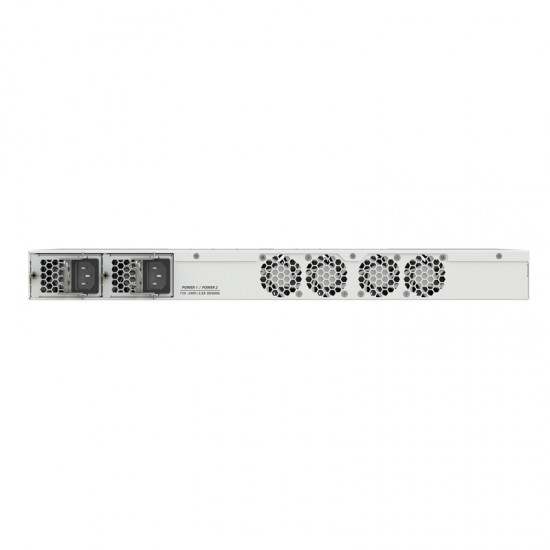

• Two hot-swap power supplies for redundancy

New generation CPU

• 72 core CPU
• 1GHz clock per core
• State of the art TILE GX architecture

Highest performance

• Over 100 million PPS packet throughput
• Up to 80Gbps big packet throughput

Product Specifications

• CPU: Tilera Tile-Gx72 CPU (72-cores, 1Ghz per core)
• Memory: 16GB ECC RAM
• Ethernet: 1 x 10/100/1000
• SFP: 8 x 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support
• Expansion: microUSB port, SmartCard slot, USB 2.0
• Storage: 128 MB Onboard NAND (expansions available)
• Serial port: 1 x RJ45 serial port
• Power supply: 2 x IEC C14 standard connectors 110/220V (Two redundant PSU)
• Input voltage: 12V
• Power consumption: 100W
• Operating System: MikroTik RouterOS v6, Level 6 license

Product Includes:

• CCR1072 Router unit
• Screw and feet kit
• Rack mount ears

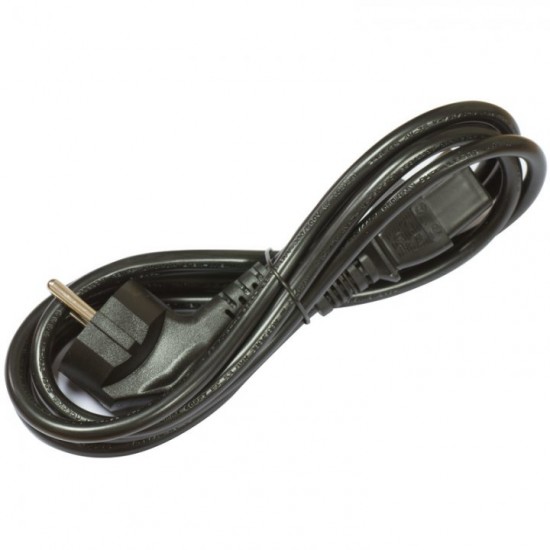

• 2 x IEC cord
