RouterBoard 1100AHx4 Dude edition
The RouterBoard 1100AHx4 is a 13-port Gigabit router with its own rackmount case for easy integration into an existing network, microSD slot for portable storage.

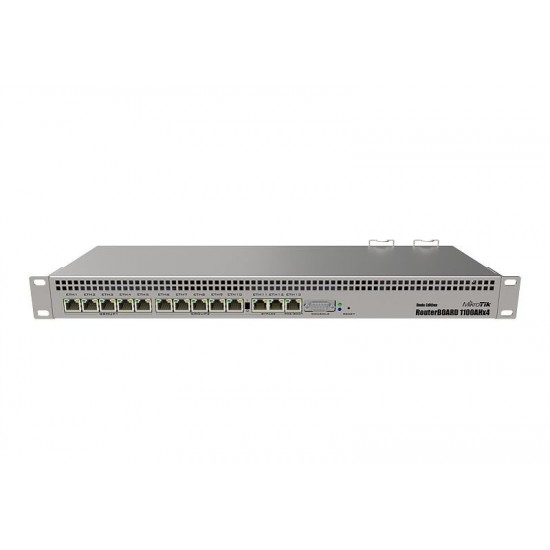

1U Rackmount Case

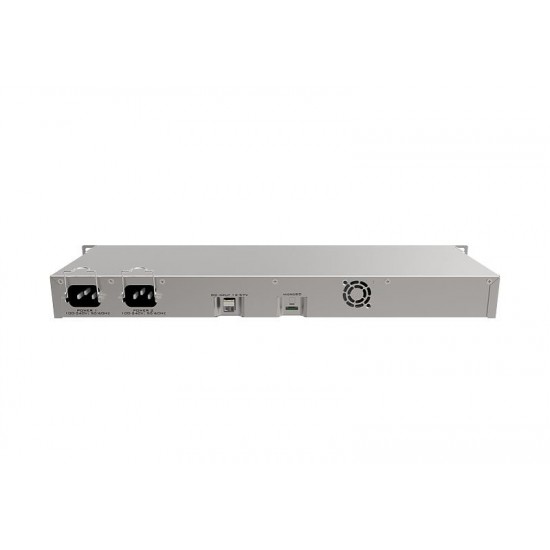

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Fast Internet Speed
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).
Ports
The RouterBoard 1100AHx4 doesn’t have a miniPCI slot but a single microSD slot for the memory card, which is now often used in plenty of portable devices such as mobile phones and certain cameras. This makes the transfer and sharing of files more efficient and quick. It is also compatible to some devices that work with power over Ethernet, provided that their much-needed power is around 12 to 24 volts, which is the same one used for the device itself.
The device is an amazing 13-port router that provides gigabit Ethernet with bypass capabilities, making this one of the best rack-mounted routers in the market. Some of the ports are part of the switch groups. For added protection, you can also encrypt the hardware.
RB1100Dx4 replaces the following EOL products: MikroTik RB1100AHx2.
SPECIFICATION
| Specifications | |
| Additionally | Redundant power supply; beeper; voltage, current and board temperature sensors |
| Configuration Interface: | 2x SATA 3 (2.5 inches) 2x M.2, SATA 3 compatible (supported sizes 2242, 2260 and 2280, M-key) 1x microSD |
| Memory: | 128MB NAND + 60GB M.2 SATA 3 drive installed |
| RAM: | 1 GB RAM |
| Wires | AL21400 1.4 GHz, 4 cores, 4 threads |
| Dimensions: | 444 x 148 х 47 mm |
| Operating Temperature: | -40.. +70°C |
| Architecture: | ARM (32 bit) |
| Operating System: | RouterOS Level 6 |
| Networking Interface: | 13х 10/100/1000 Ethernet |
| Powering | |
| Supply | 2x IEC 100-240 V 50/60 Hz (built-in power supplies) Terminal block 12-57 V DC (supports -48 V Telecom DC) PoE Passive / 802.3at 20-57 V DC Backup function with any input (group of all 4 inputs) |
| Max power consumption: | 25 W |
