MikroTik CCR1036-12G-4S (CCR1036-12G-4S)

Mikrotik Cloud Core Router 1036-12G-4S is the latest flagship model in the Mikrotik industrial router lineup:

• 36-core Tilera Tile-Gx36 1.2GHz processor with 12MB shared internal cache.
• RAM - 2xDDR3 SODIMM, 16 GB preinstalled.
• The proprietary operating system from MikroTik - RouterOS V6 64bit of the latest version with the maximum level of configuration Level6, without restrictions on the maximum amount of memory.
• 12 Gigabit Ethernet ports with Auto-MDI / X functionality, 4 SFP ports, serial console port, USB connector.
• All ports are connected directly to the processor.

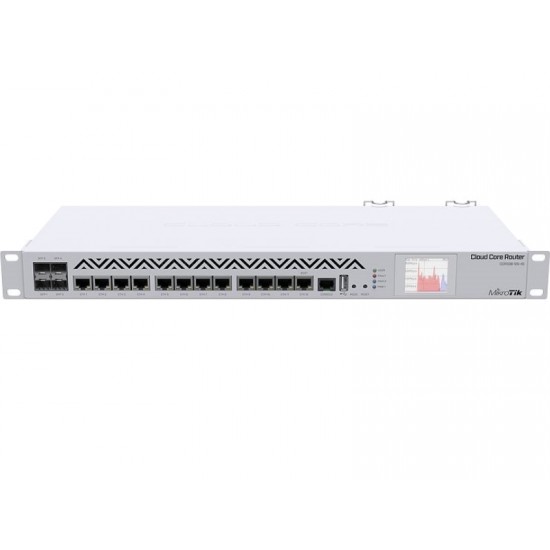

• Body with color LCD touch screen. The display shows information about the state of the device, graphs of network traffic, provides access to simple configuration parameters.
• The device is mounted in a 1U (19 ") server rack.

Mikrotik Cloud Core Router 1036-12G-4S is an industrial-grade router with a 36-core processor. The 36-core cloud gives the device unprecedented computing power, delivering high throughput and consistent device performance.

The maximum throughput of the device is 16 Gbps, the packet performance is more than 8 million packets / sec. with standart forwarding, more than 24 million packets / sec. with fastpath forwarding enabled.

The proprietary RouterOS operating system provides dynamic routing, work with access points, firewalls, MPLS, VPN, load balancing, real-time communication, network configuration and monitoring, and other device functions.

Mikrotik Cloud Core Router 1036-12G-4S is the best solution for high-load networks, providing processing of millions of packets per second

CCR1036-12G-4S

Whether you’re a hard-core gamer, a regular online media streamer, or an enterprise with a dream to grow, you need a router that makes creating and managing network setups a lot easier, more practical, and more efficient. You need a bigger memory, a more powerful processor, and a router that is flexible to your ever-changing network or wireless needs. CCR1036-12G-4S fits the bill for a lot of reasons. It boasts nothing but only some of the best vital components, from the ports down to the core processors, slots, and memory you surely wouldn’t ask for anything more. It’s definitely the epitome of industrial-grade wireless technology.

Above-the-line Performance

The CCR1036-12G-4S is able to perform way above other commercial-grade or enterprise-level routers and provide truly reliable and over-the-top wireless Internet speed and strength because of the parts that make it up. It currently runs on a 36-core processor with an astonishing speed of 1.2GHz for every core. That’s basically a millions of packets in each second. To top it off, it comes with a 4GB RAM, but since it’s fitted with the equally efficient RouterOS, you can easily upgrade this to 16GB or even higher. It also possesses 12MB of on-chip cache and makes use of the TILE GX architecture.

A Variety of Network Topologies

Networking devices with CCR1036-12G-4S has never been this easy and fast. The router is equipped with a dozen of Gigabit Ethernet ports, 4 SFP ports, 1 USB port, and serial console cable. All the Gigabit ports connect directly to the router’s CPU, allowing you to maximize the juices provided by the core processor.

RouterOS License L6 The CCR1036-12G-4S runs on the current RouterOS license, which is L6, making the router act as a controller as well. You can upgrade it to version 7.x without extra cost and enjoy unlimited support to different protocols, tunnels, interfaces, and queues, among others.
