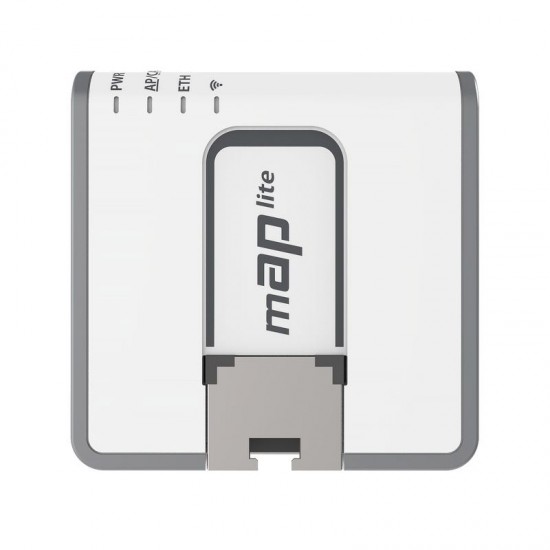

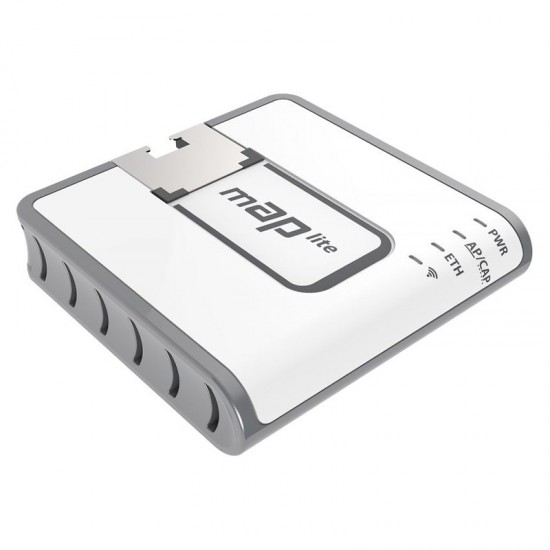

MikroTik mAP lite (RBmAPL-2nD)

MikroTik mAP lite (RBmAPL-2nD)
MikroTik mAP lite (RBmAPL-2nD)
MikroTik mAP lite (RBmAPL-2nD)
MikroTik mAP lite (RBmAPL-2nD)
MikroTik mAP lite (RBmAPL-2nD)
MikroTik mAP lite (RBmAPL-2nD)
MikroTik mAP lite (RBmAPL-2nD)
  • Model: RBmAPL-2nD
  • UPC: 70874743260
  • EAN: 708747432602

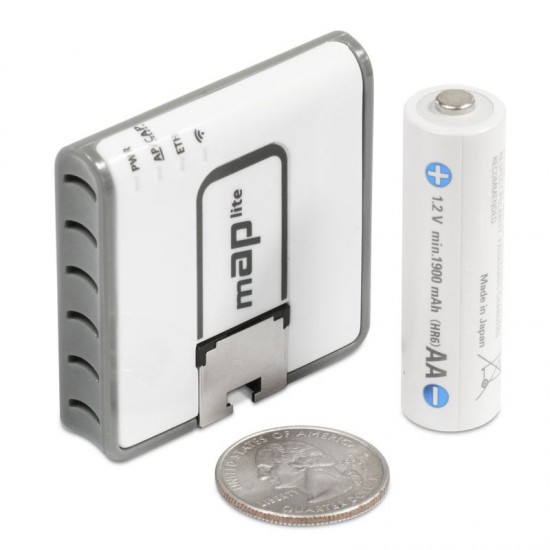

The mAP lite is Mikrotik smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It comes with a built-in magnet, so you can attach it to any ferrous surface, or, if those are not available, a metallic plate with an adhesive back is also included.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device, plus, it neatly attaches to the rack with it’s magnet.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Использование MikroTik mAP lite

Specifications

Details
Product codeRBmAPL-2nD
ArchitectureMIPSBE
CPUQCA9533
CPU core count1
CPU nominal frequency650 MHz
Dimensions48x49x11mm
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-30°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9533
Wireless 2.4 GHz generationWi-Fi 4

Ethernet

Details
10/100 Ethernet ports1

Powering

Details
MicroUSB input Voltage5-5 V
Number of DC inputs2 (PoE-IN, MicroUSB)
Max power consumption3.5 W
FAN countPassive
PoE in802.3af/at
PoE in input Voltage10-60 V

Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71

Included parts



Specifications
Characteristics MikroTik mAP lite
Architecture: MIPSBE
Processor Specs: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Size of RAM: 64 MB
Storage size: 16 MB
License level: 4
Operating System: RouterOS
Wireless
Wireless Band: 2.4 GHz
Antenna gain dBi for Wireless 2.4 GHz: 1.5
Wireless 2.4 GHz Number of chains: 2
Ethernet
10/100 Ethernet ports: 1
10/100/1000 Ethernet ports: None
Fiber
SFP ports: None
SFP+ ports: None
Powering
Max power consumption: 3.5 W
PoE in: 802.3af/at
Number of DC inputs: 2
PoE in input Voltage: 10-60 V
