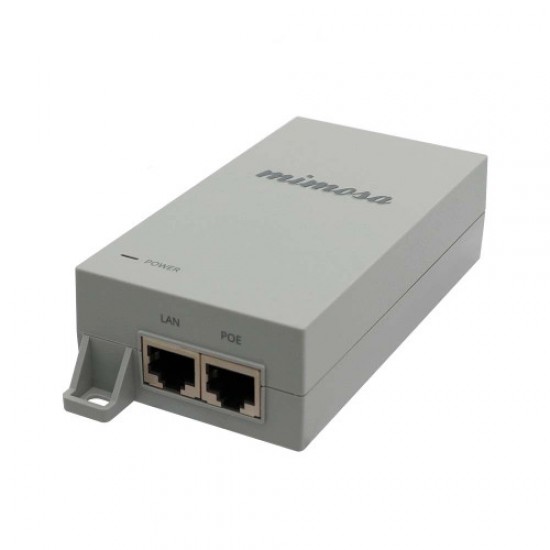

The Mimosa PoE Injector 50V (502-00022) is a crucial component for deploying Mimosa wireless solutions, delivering the necessary power over the same Ethernet cable used for data transmission. This simplifies installation and reduces the number of cables needed, especially for devices located far from power outlets.High Power Output: Provides 50 V output voltage and a maximum current of 1.2 A, equating to up to 60 W of power. This is sufficient to power most high-performance Mimosa radios, including the B5, B5c, B11, B24, A5, A5c, C5x, C6x, and A6 series (where applicable).
Gigabit Speed: Supports Gigabit data transfer rates (10/100/1000BASE-TX) through its two RJ-45 ports, ensuring no network bottlenecks caused by the power supply.
Passive PoE: Uses a passive PoE scheme, delivering power over the unused pairs of the Ethernet cable (PIN 1/2 and 4/5 for +50 V; PIN 3/6 and 7/8 for GND).
Wide Input Voltage Range: Compatible with 100 to 240 V AC input voltage, allowing for worldwide use.
Protection Features: Includes overcurrent and overvoltage protection to ensure the safety of connected devices.
Compact Design: Features compact dimensions (138 mm x 62 mm x 35 mm), making it easy to mount and integrate into various installations.
Compatibility: Perfectly suited for powering a wide range of Mimosa devices that require 50V PoE.
Power Cord Not Included: Note that the AC power cord (IEC-320 C6 cable) for connecting to an outlet is sold separately.
