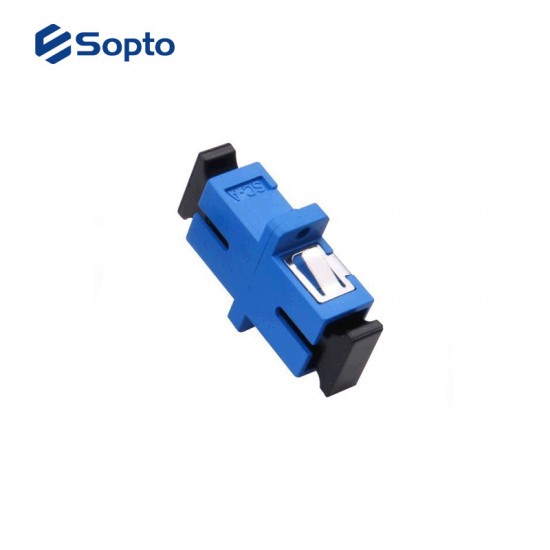

SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES

SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
SOPTO Adaptor Simplex SC/SC Female to Female UPC SM Plastic shell with Ears with Spring strip SPAD-SCF-SCF-U-SS-PES
  • Model: SPAD-SCF-SCF-U-SS-PES
SOPTO SOPTO
Add to Cart
Buy Now Question
Add to Wish List Add to compare

Sopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability.



Features

>Low insertion loss, high return loss

>Good compatibility

>High precision of mechanical dimensions

>High reliability & stability

>Ceramic or Bronze Sleeve

>Simplex / Duplex



Applications

>Local Area Network

>CATV System

>Telecommunication Networks

>Equipment Test



Specifications

Parameter

 Unit

 LC, SC, FC, MU, ST, SC-ST, FC-ST,   FC-SC, FC-LC, FC-MU

 SM

 MM

 PC

 UPC

 APC

 PC

 Insertion Loss (Typical)

 dB

 ≤0.3

 ≤0.2

 ≤0.3

 ≤0.2

 Return Loss

 dB

 ≥45

 ≥50

 ≥60

 ≥30

 Exchangeability

 dB

 ≤0.2

 Repeatability

 dB

 ≤0.2

 Durability

 Time

 >1000

 Operating Temperature

 ℃

 -40~75

 Storage Temperature

 ℃

 -45~85



Ordering Information

Ordering Info. for Adaptor

Part Number:SPAD - SC  F - SC   F - A  -S  S- P E S

                                    1   2     3     4   5    6  7  8 9 10
  Product Description:Adaptor   Simplex SC Female/SC Female APC SM      Plastic shell with Ears with Spring strip

1 - Connector A

LC SC FC ST etc

2 - Connector A   Type

F:Female ;       M:Male

3 – Connector B

LC SC FC ST etc

4 – Connector B Type

F:Female ;     M:Male

5 - Endface

U:UPC   polish;  P:PC polish;  A:APC polish

6 - Communication Type

S:Simplex;    D:Duplex;   Q:Quadruple ;   Null:   Multicores

7 - Adapted Fiber Type

S:SM; M:MM ; Null:not Specified

8 -Shell Material

P:Plastic;    PM:Half Plastic Half Metal;    M;Metal

9 -Structure 1

E:with Ears;       Null:without Ears

10 - Structure 2

S:with Spring   strip;       Null:without   Spring strip
