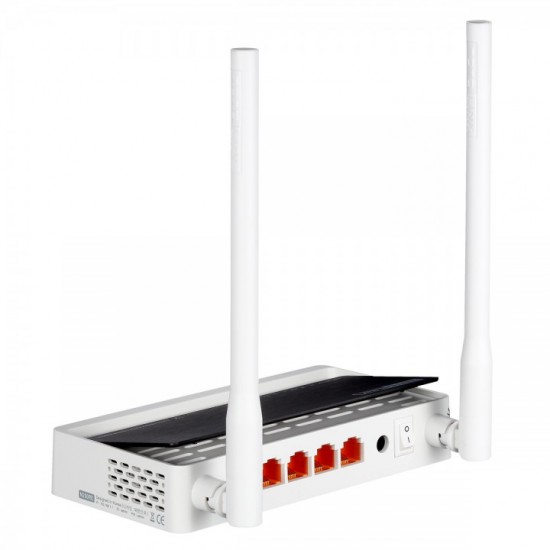

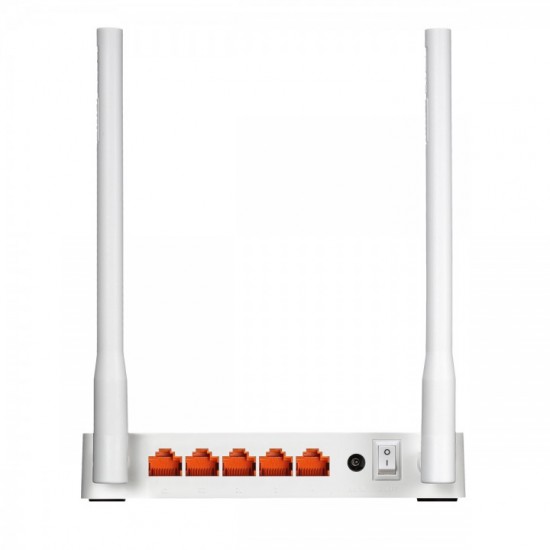

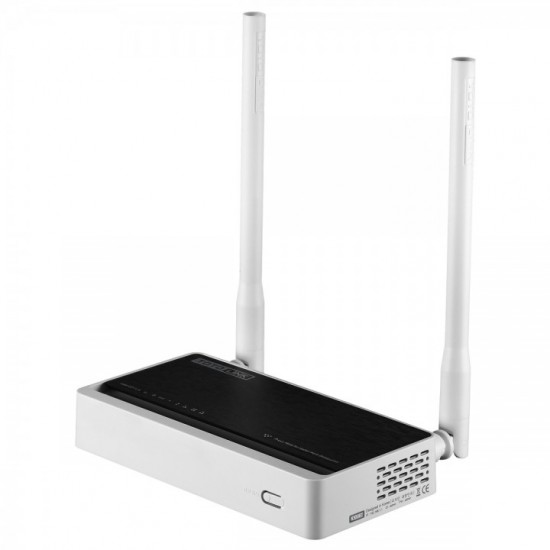

TOTOLINK N300RT is a wireless router that complies with the 802.11n standard and provides wireless transmission speeds of up to 300 Mbps. With two high-performance antennas, the N300RT provides stable Wi-Fi signal and wide coverage, allowing multiple Wi-Fi devices to simultaneously use Internet access. In addition, it supports the most advanced WPA / WPA2 encryption method to prevent unauthorized access.

Features

- Complies with IEEE 802.11n / g / b standards for 2.4GHz Wireless LAN.

- Up to 300Mbps data rate for Wi-Fi network.

- Advanced MIMO technology enhances the throughput and wireless coverage.

- Supports DHCP, Static IP, PPPoE (dual access), PPTP (dual access), L2TP (dual access) broadband functions

- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.

- Connects to secure network easily and fast using WPS.

- Supports IP, Port, MAC, URL filtering and Port Forwarding.

- QoS: Bandwidth Control based on IP / MAC.

- Multi-SSID allows user to create multiple SSIDs according to their needs.

- Supports VLAN function for IPTV and other internet services.

- Universal repeater and WDS function for easy Wi-Fi extension.

- Supports TR-069 protocol for remote centralized management.


Specifications
Buttons 1 *RST/WPS, 1* Power On/Off
Data Rate: 802.11n: Up to 300Mbps 802.11g: Up to 54Mbps 802.11b: Up to 11 Mbps
Environment: Operating Temperature: 0 ℃ ~ 40 ℃  Storage Temperature: -40 ℃ ~ 70 ℃  Operating Relative Humidity: 10% ~ 90% Non-condensing.  Storage Humidity: 5% ~ 90% Non-condensing.
Frequency Range 2.4-2.4835GHz
Guarantee 3 il
Light indication 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *WAN, 4 *LAN
Management: Firmware Update, QoS, TR-069, DDNS, Access Control
Standards: IEEE 802.11 n, IEEE 802.11g, IEEE 802.11b
WAN: DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP (dual access)
Dimensions: 147.5 x 76 x 25 mm
Interfaces: 4 *10/100Mbps LAN 1 *10/100Mbps WAN
Antennas: 2 * 5dBi Fixed Antennas (2.4G)
Operation mode: Provider Wireless Client  Wireless client  Range extender  Router  Bridge with AP  Customer
Networking Interface: VLAN, IPv6
Encryption: 64/128-bit WEP, WPA, WPA2 and WPA/WPA2
Wireless
EIRP: 2.4GHz: < 20dBm
Firewall MAC Filtering, IP Filtering, URL Filtering, Port Forwarding, DMZ
Reception Sensiticity: 270M: -61 dBm@10% PER 135M: -65 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER
Schedule Reboot Schedule, Wireless Schedule
Wireless 2.4 GHz chip model: Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
Powering
Power Supply: 9V DC / 0,5A
Other
Package Contents: N300RT Wireless Router * 1  Power Adapter “1  Ethernet cable * 1  Quick Installation Guide
