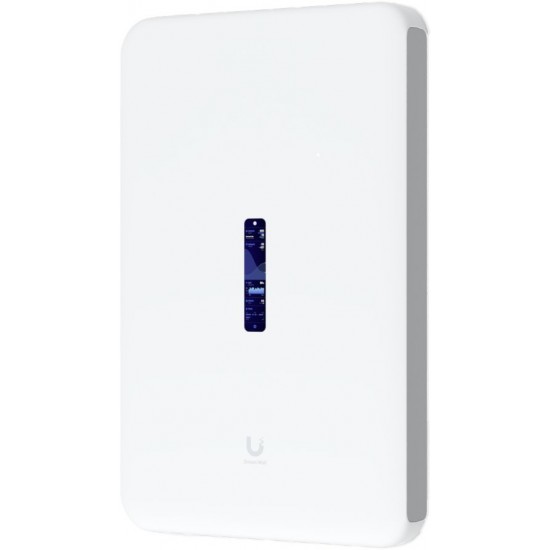

- Model: UDW
Wall-mounted UniFi OS Console with a security gateway, a PoE switch including four 802.3bt PoE++ ports, a high-performance access point, and a network video recorder.
UniFi Application SuiteNetwork✓
Protect✓
Access✓
Talk✓
Connect✓
Managed UniFi Devices100+
Managed Cameras(12) HD
(7) 2K
(4) 4K
Simultaneous Users Connected300+
Max. WAN Port Count8

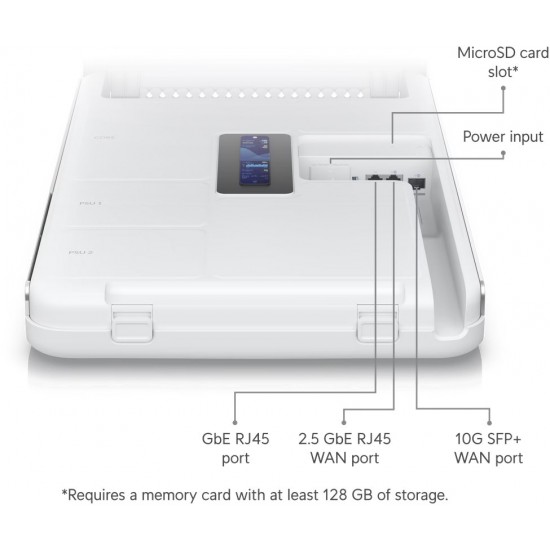

Default WAN Ports(1) 2.5 GbE RJ45
(1) 10G SFP+

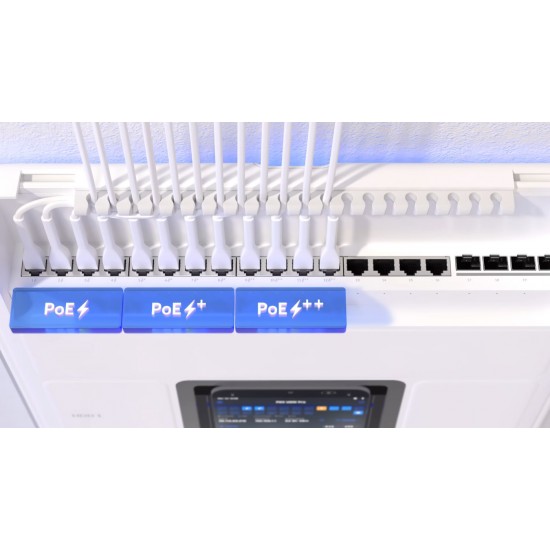

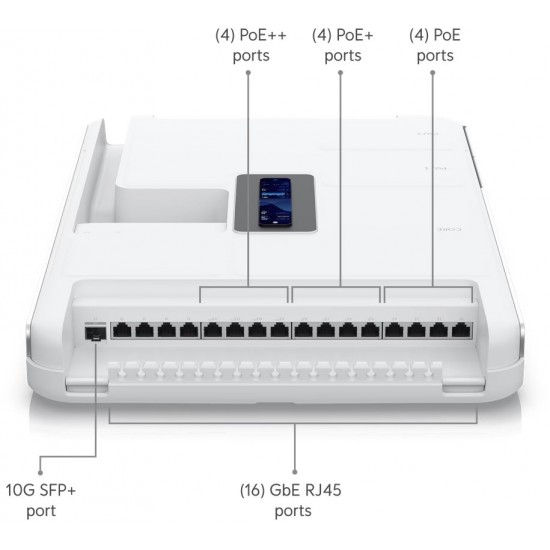

Port Layout1 GbE RJ4517 (4 PoE++; 4 PoE+; 4 PoE
(1G/100M/10M)
2.5 GbE RJ451
(2.5G/1G/100M)
10G SFP+2
(10G/1G)
IDS/IPS Throughput3.5 Gbps
Form FactorWall-mounted
Redundancy(2) Hot-Swappable PSUs
Coverage Area140 m² (1,500 ft²)
Security
Stateful Firewall✓
Application-Aware Layer 7 Firewall✓
DPI & Traffic Identification✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)✓
Content Filtering✓
Intrusion Prevention (IPS/IDS)✓
Ad Blocking✓
IDS/IPS Signatures55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation✓
VPN & SD-WAN
License-Free SD-WAN✓
Site-to-Site VPNSite Magic✓
IPsec✓
OpenVPN✓
VPN ServerIdentity Endpoint One-Click VPN✓
Teleport Zero-Configuration VPN✓
WireGuard✓
OpenVPN✓
L2TP✓
VPN ClientOpenVPN✓
WireGuard✓
Networking
Multi-WAN Load Balancing✓
Dynamic RoutingOSPF✓
BGP✓
Advanced QoS✓
Multicast DNS (mDNS)✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)✓
Integrated RADIUS Server✓
RADIUS over TLS (RadSec)✓
Additional Internet Failover with UniFi LTE Backup✓
Internet Quality and Outage Reporting✓
MAC Address Table Size8,000
Policy-based WAN and VPN Routing✓
Customizable DHCP Server✓
IPv6 ISP Support✓
IGMP Proxy✓
Integrated WiFi
WiFi Standard802.11a/b/g/n/ac/ax (WiFi 6)
Throughput5 GHz2.4 Gbps
2.4 GHz300 Mbps
MIMO5 GHz4 x 4 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
Antenna Gain5 GHz6 dBi
2.4 GHz5.9 dBi
Max. TX Power5 GHz26 dBm
2.4 GHz23 dBm
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs8 per Radio
Supported Data Rates802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Hardware

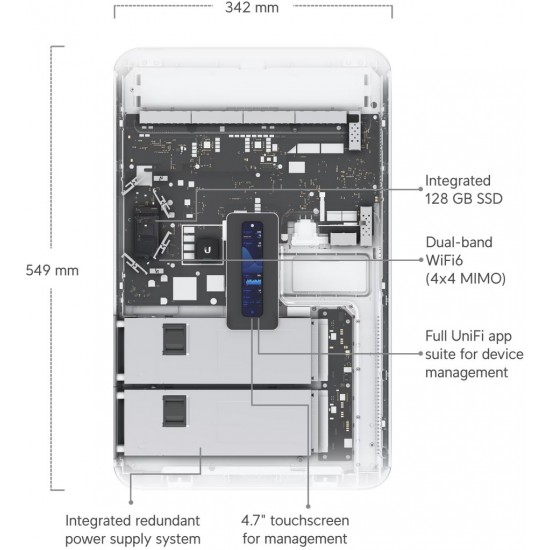

NVR StoragePre-installed 512 GB microSD for NVR
Built-in 128 GB SSD for detection recordings
Expansion SlotMicroSD Card
PoE Budget420W
Max. PoE Wattage per Port by PSEPoE15.4W
PoE+30W
PoE++60W
Voltage Range PoE ModePoE: 44-57V
PoE+/PoE++: 50-57V
Max. Power Consumption532W (Including PoE Output)
Power MethodUniversal AC input 100—240V AC, 7A Max., 50/60Hz

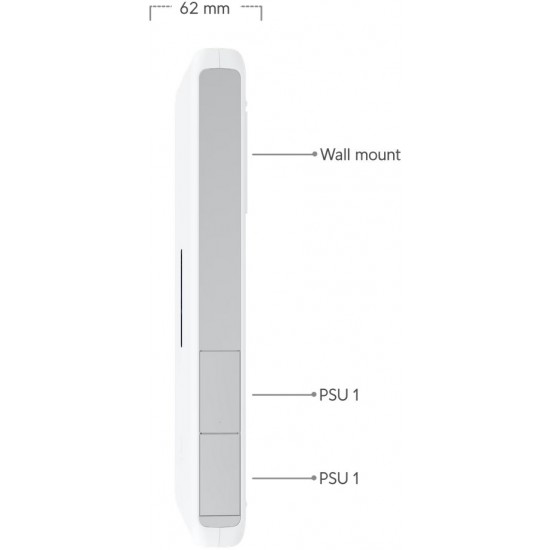

Power Supply(2) Hot-Swappable AC/DC 550W PSU
(1) Pre-installed PSU
Supported Voltage Range100—240V AC
ProcessorQuad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory4 GB
On-board Storage16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card
Weight8.6 kg (19 lb)
Enclosure MaterialPolycarbonate, galvanized steel, aluminum alloy
Mount MaterialStainless steel
LCM Display4.7" touchscreen
ManagementEthernet
Bluetooth
LEDsEthernet✓
SFP+✓
Button(1) Factory-reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
NDAA Compliant✓
CertificationsCE, FCC, IC, Anatel
Software
VLAN802.1Q
Guest Traffic Isolation✓
