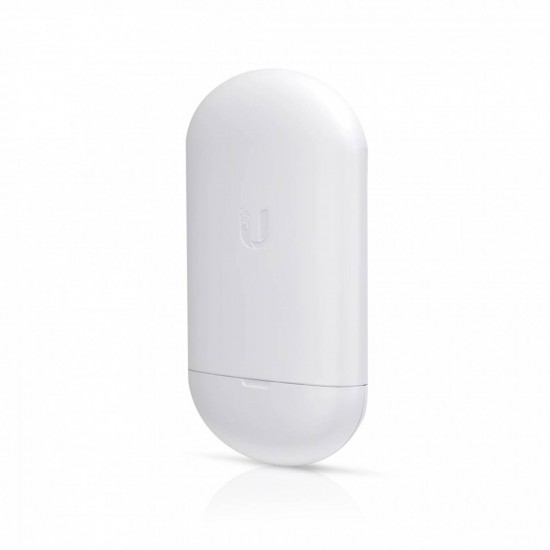

Ubiquiti LTU Lite (LTU-Lite)

LTU-Lite

Introducing Ubiquiti's patented LTU technology, LTU-Lite is a 5 GHz radio with a built-in antenna, designed to be used as CPE PtMP. LTU technology overcomes the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. The flexibility of the channel width (10/20/30/40/50 MHz) allows you to independently configure the frequencies of the TX and RX channels anywhere in the radio frequency range to avoid local interference.

PtMP CPE

1024 QAM

10/20/30/40/50 MHz Radio Band Width

Central configuration management by AP

Frequency separation

Automatic power adjustment

Router Mode Support

Functions in a PtMP environment with LTU-Rocket as a base station

Thanks to the integrated antenna, LTU Lite is a compact, economical subscriber station using the 5 GHz radio frequency band. It functions as a CPE (customer premises equipment) in a Point-to-MultiPoint (PtMP) environment with LTU Rocket® as the base station.

Patented LTU Technology

Based on Ubiquiti's LTU technology, LTU Lite is not limited to standard 802.11 Wi-Fi technology. LTU Lite provides real TCP / IP bandwidth up to 600+ Mbps (1) and modulation speed up to 4096QAM (2).

(1) 1+ Gbps with future firmware update.

(2) Available with future firmware update.

CPE Modes

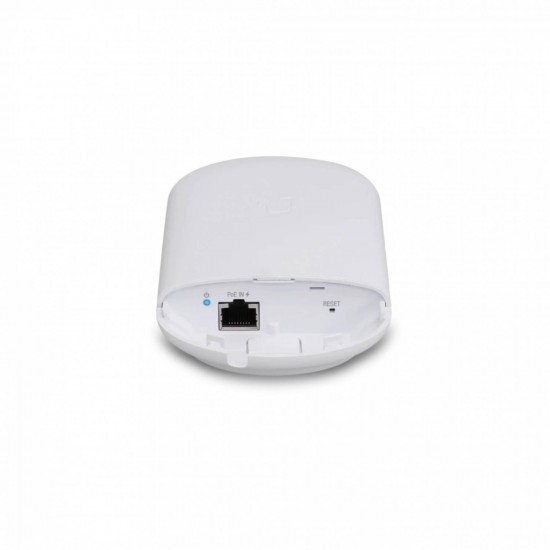

LTU Lite supports bridged and embedded NAT router modes according to your requirements.

Frequency separation

LTU Lite may use different frequencies for transmission and reception to avoid interference.

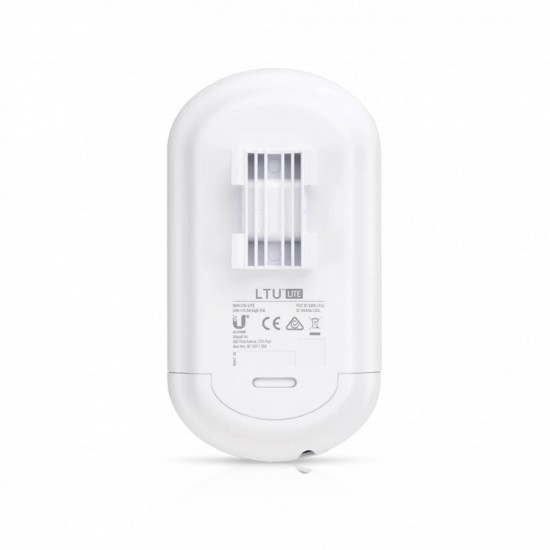

Convenient mounting options

LTU Lite is designed for fast but reliable mounting on a pole or wall. All necessary mounting hardware is included.
