Ubiquiti LTU Pro (LTU-Pro)

LTU-PRO

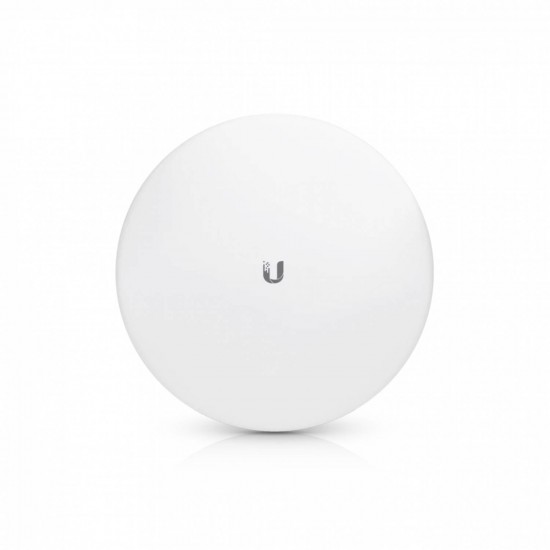

LTU Pro is a 5 GHz Point-to-MultiPoint (PtMP) high-performance subscriber station that embodies innovative industrial design and advanced technology. Based on Ubiquiti's patented LTU technology, LTU Pro is not limited by the capabilities of standard 802.11 Wi-Fi technology. It features a built-in high gain antenna dish for long range and high performance. The flexibility of the channel width (10/20/30/40/50 MHz) allows you to independently configure the frequencies of the TX and RX channels anywhere in the radio frequency range to avoid local interference.

Functions:

PtMP CPE

1024 QAM

10/20/30/40/50 MHz channel bandwidth

Central configuration management by AP

Frequency separation

Automatic power adjustment

Router Mode Support

Functions in a PtMP environment with LTU-Rocket as the base station.

Thanks to its built-in 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (customer premises equipment) in a point-to-multipoint (PtMP) environment with LTU Rocket® as the base station.

Patented LTU Technology:

Based on Ubiquiti's LTU technology, LTU Pro is not limited to standard 802.11 Wi-Fi technology. LTU Pro provides real TCP / IP bandwidth up to 600+ Mbps (1) and modulation speed up to 4096QAM (2).

(1) 1+ Gbps with future firmware update.

(2) Available with subsequent firmware upgrade.

CPE Modes:

LTU Pro supports bridged and embedded hardware NAT router modes to suit your specific deployment.

Frequency Separation:

LTU Pro can use different frequencies for transmission and reception to avoid interference.

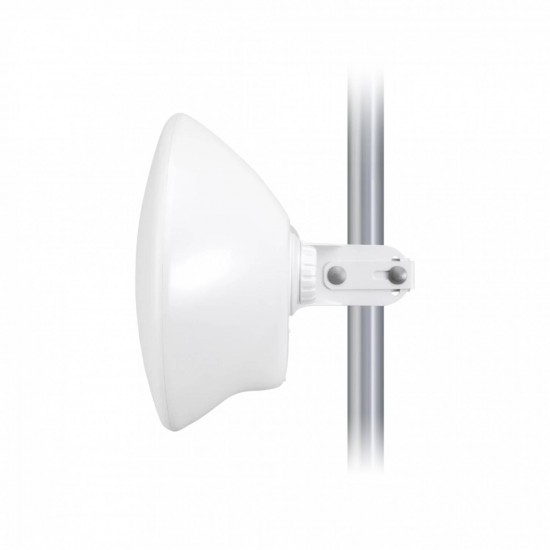

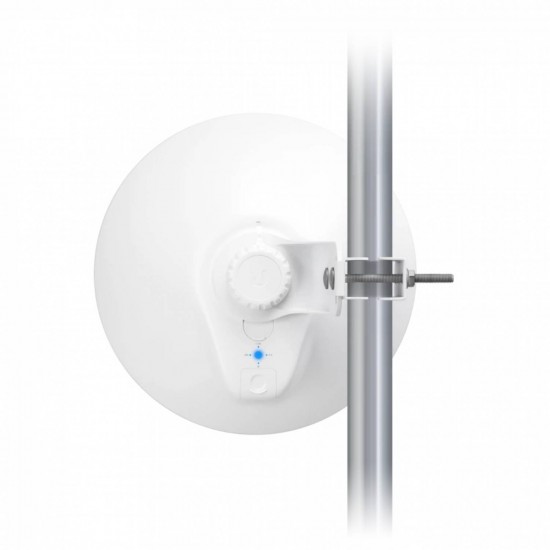

Robust mast design:

LTU Pro is designed for fast but reliable mast mounting. It has a built-in mechanical tilt; the mounting bracket allows you to conveniently adjust the angle of inclination in the range of ± 15 °.
