- Model: USG-PRO-4
- UPC: 81035402282
- EAN: 810354022821
The UniFi® Security Gateway Pro extends the UniFi Enterprise System to provide cost-effective, reliable routing and advanced security for your network.
Build your secure and flexible network with Ubiquiti Networks® UniFi® Security Gateway Pro, part of the UniFi Enterprise System. The Unifi Security Gateway Pro is a high-performance Gigabit router, delivering robust security and advanced routing features. Two combination SFP/RJ45 ports provide fiber connectivity options capable of speeds of up to 1 Gbps.
Advanced hardware-accelerated packet forwarding delivers 1+ million packets per second performance. The Unifi Security Gateway PRO offers four independent Ethernet ports with a full line rate of 4 Gbps.
Features:
- (2) Gigabit RJ45 Ethernet Ports
- (2) Gigabit Combination RJ45/SFP Ports
- 4 Gbps Full Line Rate Layer 3 Forwarding
- 1+ Million Packets per Second for 64-Byte Packets
- Sophisticated and Intuitive Graphical UI Control
- Integrated and Managed by UniFi Application

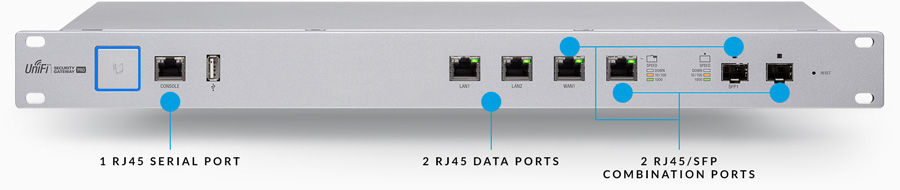

Optical Fiber Connectivity
The UniFi Security Gateway Pro offers two optional SFP ports for fiber connectivity to support backhaul applications.

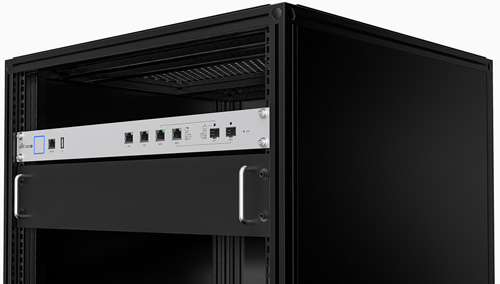

Rackmount Design
The UniFi Security Gateway Pro is housed in a durable, rackmount chassis.

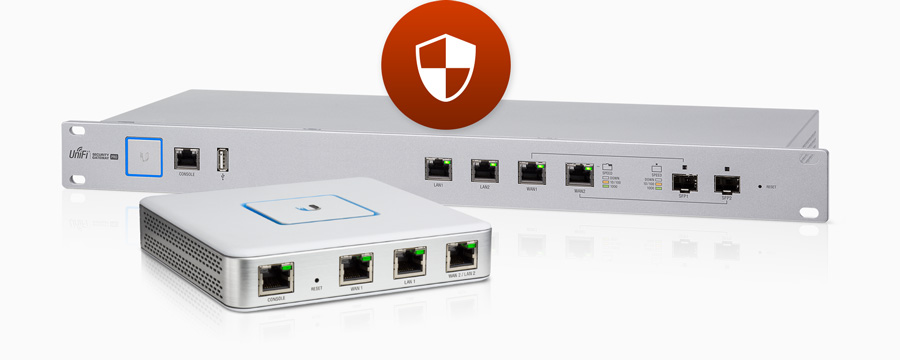

Powerful Firewall Performance
The UniFi® Security Gateway offers advanced firewall policies to protect your network and its data.

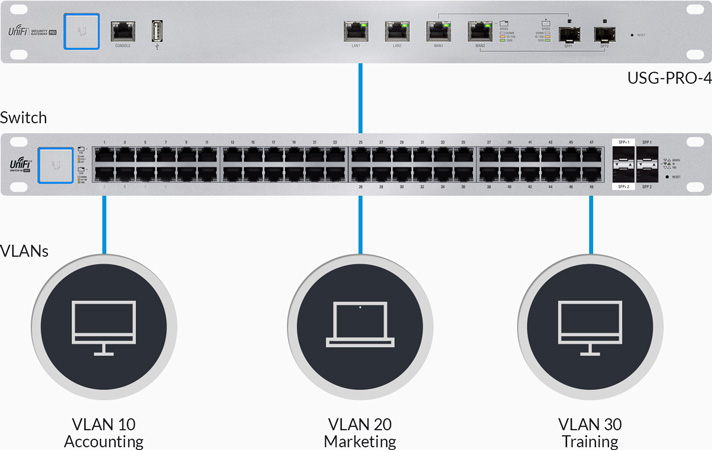

Convenient VLAN Support
The UniFi® Security Gateway Pro can create virtual network segments for security and network traffic management.
Specifications | |
Memory: | 2 GB DDR3 RAM |
Dimensions: | 484 x 44 x 164 mm (19.06 x 1.73 x 6.46") |
Weight: | 2.3 kg (5.07 lb) |
Operating Temperature: | ‐10 to 45° C (14 to 113° F) |
Operating Humidity: | 10 to 90% Noncondensing |
Processor Specs: | Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing |
Networking Interface: | Serial Console Port: (1) RJ45 Serial Port Data Ports: (2) 10/100/1000 RJ45 LAN Ports (2) 1 Gbps RJ45/SFP Combination WAN Ports |
Powering | |
Power Supply: | Internal AC/DC Power Adapter, 60W (24V, 2.5A) |
Max power consumption: | 40W |
Certification & Approvals | |
Certifications | CE, FCC, IC |
