- Model: USW-Aggregation

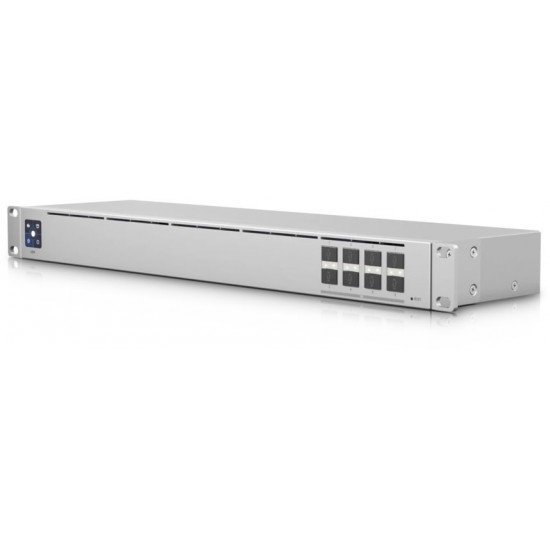

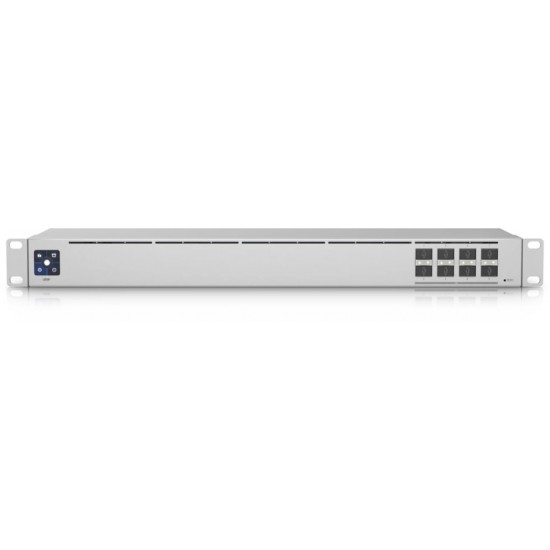

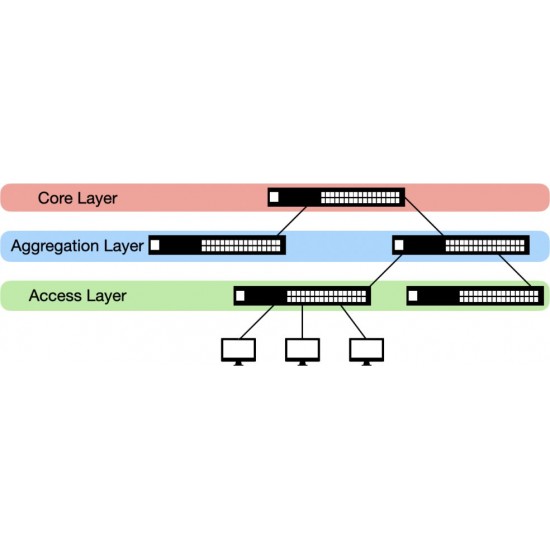

The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Port Layout10G SFP+8
(10G/1G)
Form FactorRack mount (1U)
Performance
Switching Capacity160 Gbps
Total Non-Blocking Throughput80 Gbps
Forwarding Rate119 Mpps
Supported VLANs1,000
MAC Address Table Size16,000
Packet Buffer Size1.5 MB
Access ListsIPv4128
MAC128
Layer 2 Features
LACP Port Aggregation✓
STP & RSTP✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)✓
IGMP Snooping✓
802.1X Control✓
MAC-Based ACLs & Device Isolation✓
DHCP Snooping & Guarding✓
Egress Rate Limit✓
Flow Control✓
Storm Control✓
Multicast & Broadcast Rate Limiting✓
MAC Address Blocking✓
IP-Based ACLs & Network Isolation✓
MAC-Based Port Restriction✓
Port Isolation✓
Port Mirroring✓
Jumbo Frames✓
LLDP-MED✓
Voice VLAN✓
Loop Protection✓
Hardware
Max. Power Consumption36W (Including SFP modules)
Power MethodUniversal input, 100—240V AC, 50/60 Hz

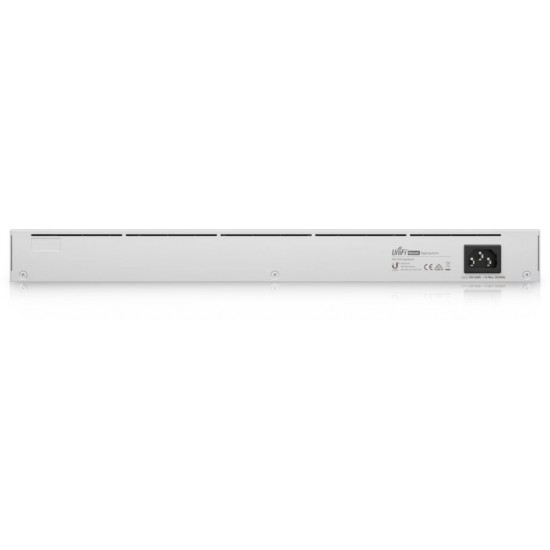

Power Input MethodAC input
Power SupplyAC/DC, internal, 36W
Supported Voltage Range100—240V AC
ManagementEthernet
AR
Heat Dissipation (Excluding PoE Output)102.36 BTU/hr
WeightWithout mounting brackets: 2.6 kg (5.8 lb)
With mounting brackets: 2.7 kg (6 lb)
Enclosure MaterialSGCC steel

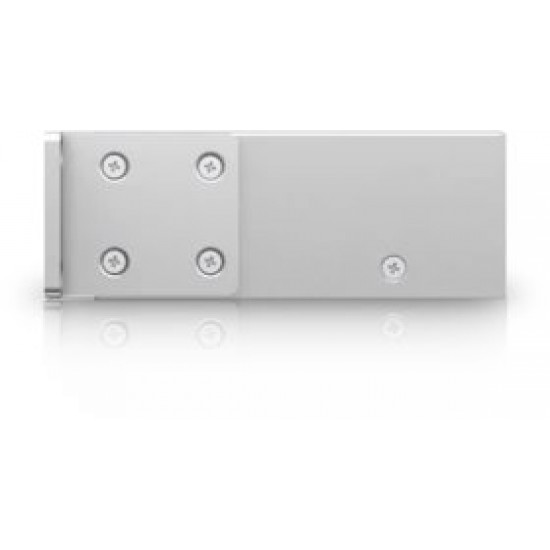

Mount MaterialSGCC steel
Supported Rack Depth400~1200 mm
(15.7-47.2")
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 16kV, contact: ± 12kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
NDAA Compliant✓
CertificationsCE, FCC, IC, Anatel
Software
Application RequirementsUniFi NetworkVersion 5.14.12 and later
