- Model: USW-Pro-XG-Aggregation

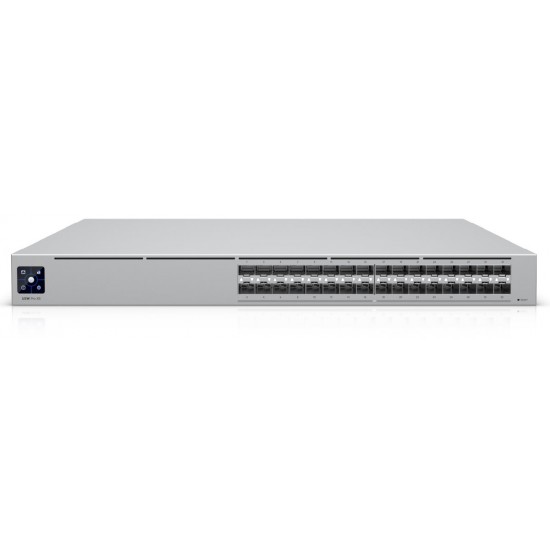

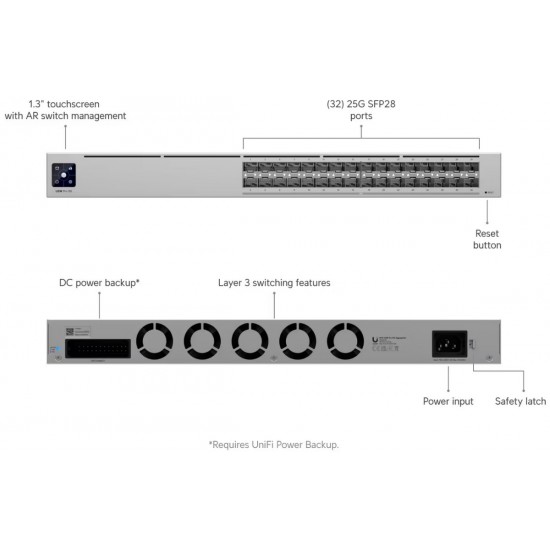

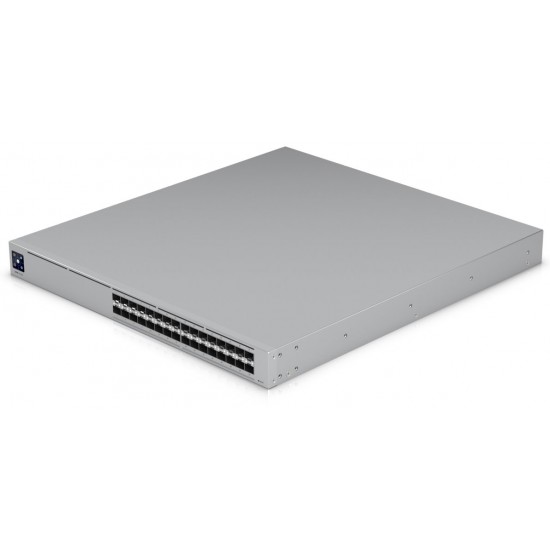

The USW-Pro-XG-Aggregation is a fully managed L3 switch in a 19" rackmount chassis featuring 32× SFP28 ports (supporting 1 G / 10 G / 25 Gbps) with the Etherlighting function, allowing you to illuminate ports in different colors to indicate port location, speed/link status, and native VLAN/network. It is equipped with a 1.3" touchscreen display capable of showing individual port statistics, error states, network load, and other information. The USW-Pro-XG-Aggregation is managed via the UniFi Controller or mobile app, enabling easy creation, scaling, and monitoring of your enterprise network.
Key Features
(32) 1G / 10G / 25Gbps (SFP28)

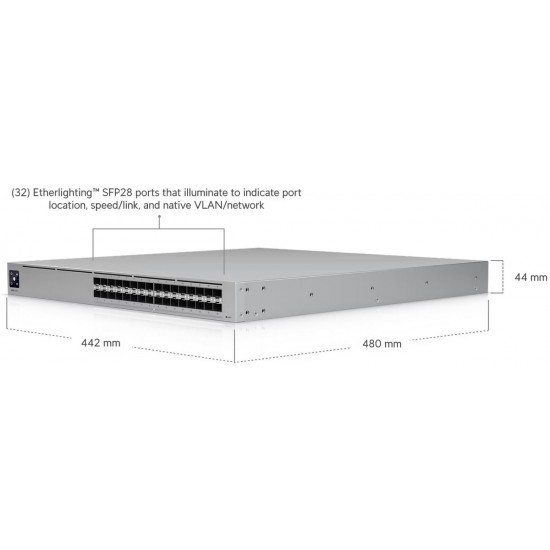

Etherlighting – illuminated port status indicators
1.6 Tbps switching capacity
Touchscreen display

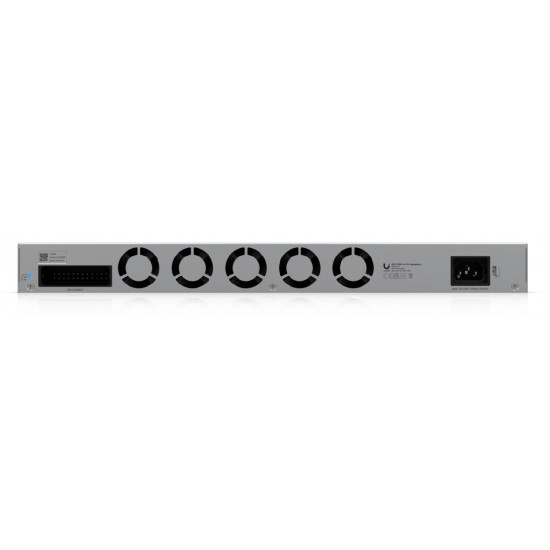

Redundant power via SmartPower RPS connector
Management through UniFi Network server
Managed via UniFi Controller
The USW-Pro-XG-Aggregation does not have a web interface; it is centrally managed via the UniFi Network server with support for the UniFi mobile app. It offers an extensive set of advanced L2 switching protocols and features, including per-port operating modes (switching, mirroring, or aggregation). The UniFi Network server and mobile app allow administrators to configure and monitor virtually all switch functions through a graphical user interface from anywhere.
Port Layout25G SFP2832
(25G/10G/1G)
RedundancyDC Power Backup
Layer 3✓
Form FactorRack Mount (1U)
Etherlighting™✓
Performance
Switching Capacity1.6 Tbps
Total Non-Blocking Throughput800 Gbps
Forwarding Rate1.2 Bpps
Supported VLANs1,000
MAC Address Table Size32,000
L3 Table SizeARP Entries128,000
IPv4 Routes256,000
Packet Buffer Size8 MB
Access ListsIPv4256
MAC256
Layer 3 Features
DHCP Server (Local Networks)✓
DHCP Relay✓
Inter-VLAN Routing (Local Networks)✓
Static Routing (Local Networks)✓
Layer 2 Features
LACP Port Aggregation✓
STP & RSTP✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)✓
IGMP Snooping✓
802.1X Control✓
MAC-Based ACLs & Device Isolation✓
DHCP Snooping & Guarding✓
Egress Rate Limit✓
Flow Control✓
Storm Control✓
Multicast & Broadcast Rate Limiting✓
MAC Address Blocking✓
IP-Based ACLs & Network Isolation✓
MAC-Based Port Restriction✓
Port Isolation✓
Port Mirroring✓
Jumbo Frames✓
LLDP-MED✓
Voice VLAN✓
Loop Protection✓
Hardware
Max. Power Consumption200W
Power Method(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 200W
Supported Voltage Range100—240V AC
ManagementEthernet
AR
Heat Dissipation (Excluding PoE Output)457 BTU/hr
WeightWithout mounting bracket: 7.1 kg (15.7 lbs)
With mounting bracket:7.2 kg (15.9 lbs)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel

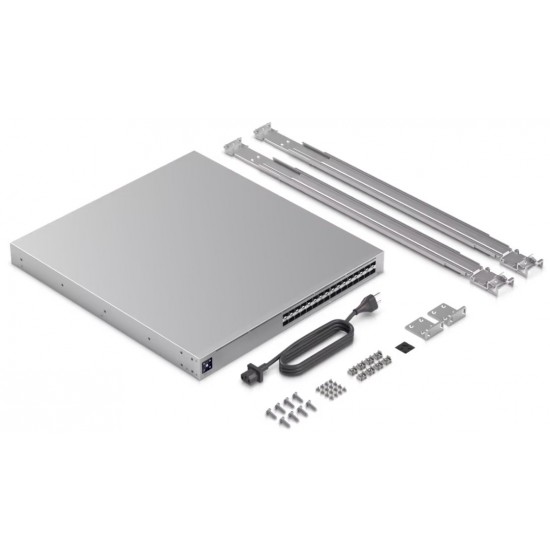

Supported Rack Depth482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 12kV, contact: ± 8kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
Etherlighting™SFP28✓
LEDsRPS✓
NDAA Compliant✓
CertificationsCE, FCC, IC
