Ubiquiti UniFi U7 In-Wall (U7-IW)

Ubiquiti UniFi U7 In-Wall (U7-IW) – Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

The UniFi U7 In-Wall (U7-IW) is a next-generation WiFi 7 access point engineered for sleek, in-wall deployment—combining ultra-fast wireless speeds, enterprise-grade features, and discreet aesthetics. Designed for modern homes, offices, and hospitality spaces, this access point delivers top-tier connectivity without compromising on design.

With 4 spatial streams, the U7-IW achieves speeds up to 4.3 Gbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band, leveraging 2x2 MU-MIMO and OFDMA technologies to handle high-density environments with minimal latency and maximum throughput. The built-in internal antennas—8 dBi (5 GHz) and 4 dBi (2.4 GHz)—ensure reliable coverage of up to 115 m², making it ideal for individual rooms or office units.

Compact Powerhouse for Modern Networks

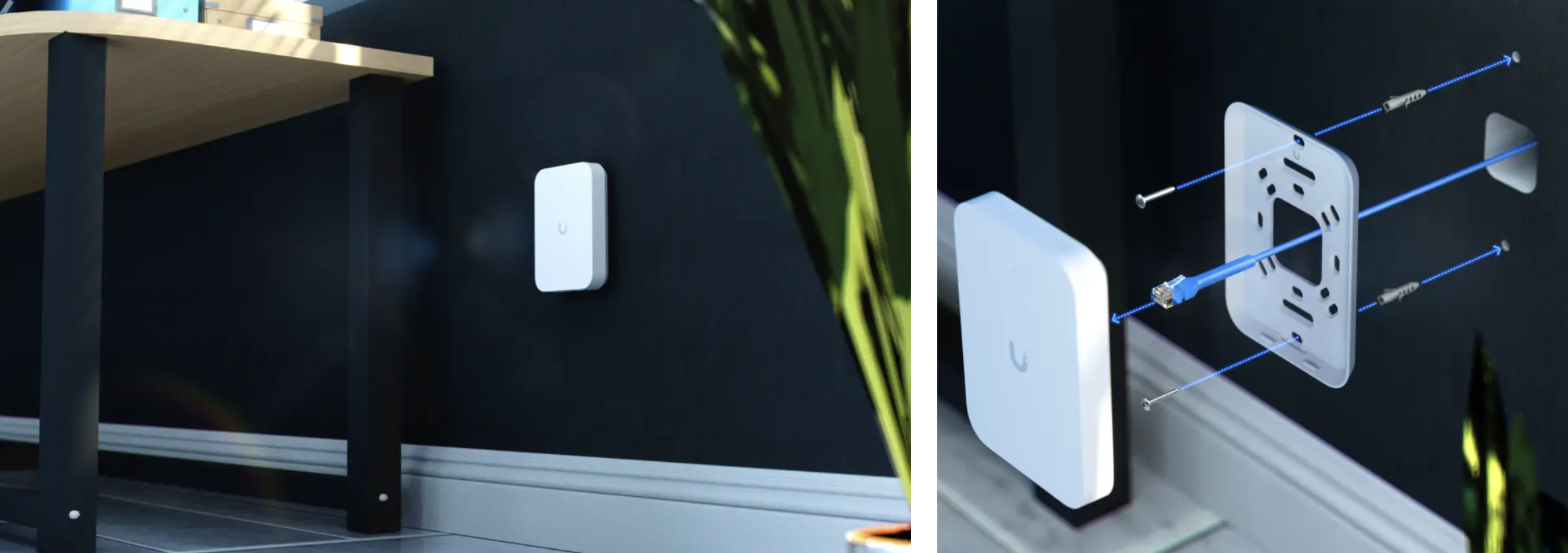

Compact in size (137 x 98.7 x 30.2 mm) and weighing just 400 grams, the U7-IW is designed for unobtrusive indoor installation. Its wireless meshing, 802.11r fast roaming, and band steering capabilities optimize the user experience by maintaining stable and high-speed connections—even when users move across coverage zones.

Whether for a luxury hotel, smart home, or corporate workspace, the U7-IW offers the performance of WiFi 7 in an elegant form factor.

Enterprise Features & Seamless Integration

Ideal for managed environments, the U7-IW includes:

Captive portal support

VLAN tagging for segmented traffic

Advanced QoS for bandwidth prioritization

Easily managed via the UniFi Network application (v9.0.114 or later), the U7-IW integrates seamlessly with the broader UniFi ecosystem of switches, gateways, and controllers—enabling full-stack management and effortless scalability.

Wired Performance Meets Wireless Innovation

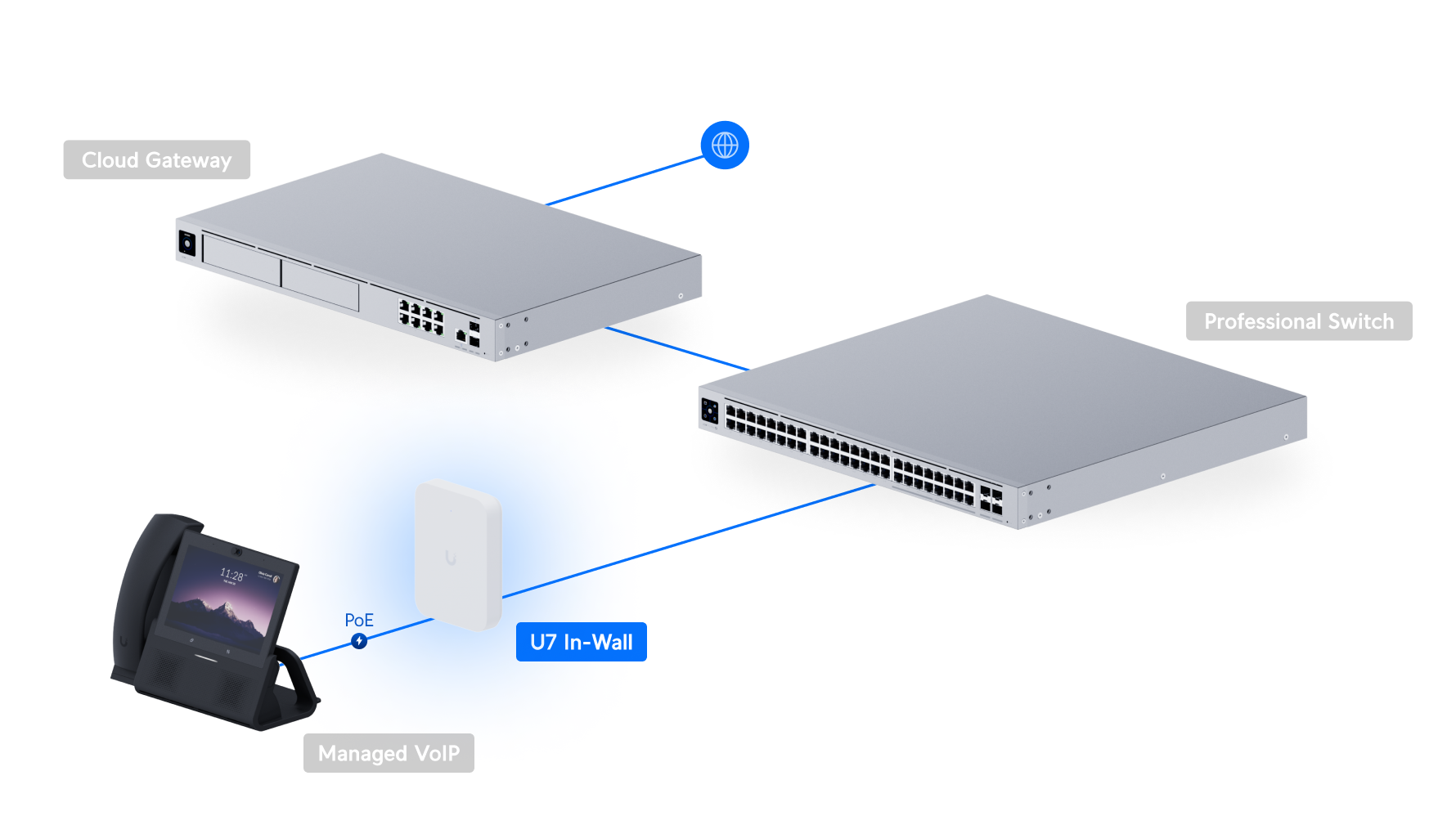

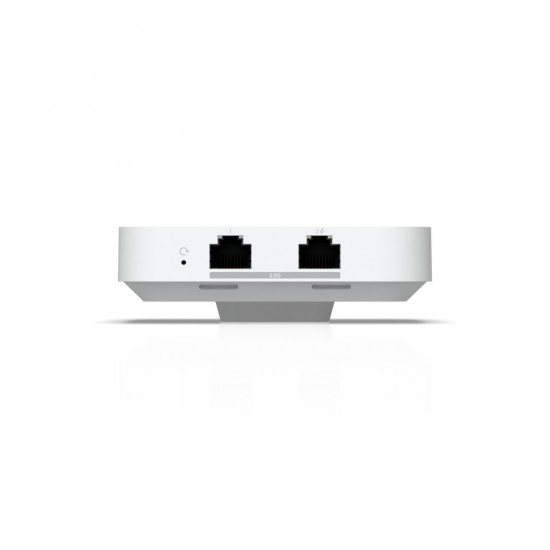

The U7-IW includes a 2.5 GbE uplink port, enabling high-speed wired backhaul to the network. Two front-facing 2.5 GbE LAN ports support device connectivity, with one providing PoE output (when the U7-IW is powered via PoE+). This simplifies deployments by powering VoIP phones or other devices directly, without needing separate adapters.

Power consumption remains efficient, with a maximum draw of 13W (excluding PoE out), making it a sustainable yet high-performance solution for any modern space.
