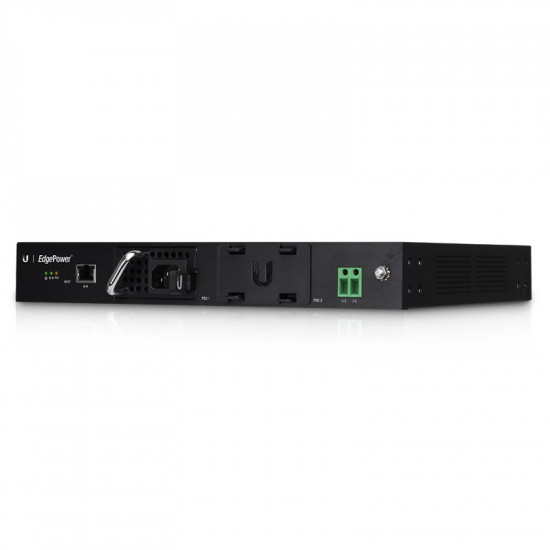

EdgePower is a modular system, high power, the PSU is designed to connect routers / switches to EdgePoint, as well as provide reliable power to connected PoE devices.

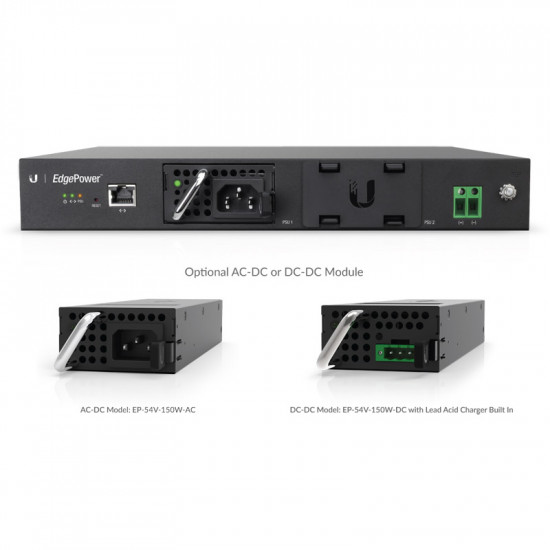

EdgePower uses modular power supplies for flexible configuration. EdgePower can use two modular power supplies to provide up to 300 watts of power, or be configured to provide up to 150 watts of power with automatic redundancy of the power supply.
EdgePower consists of a rack, two housing compartments and a control unit, and includes one AC-DC 54V, 150W PSU module:
| Specifications | |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| LEDs: | Power: System On/Off Ethernet: Management Port Link PSU: PSU1+PSU2, PSU1/PSU2 |
| Management: | Ethernet In-Band, Web UI |
| Dimensions: | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Weight: | 2.7 kg (5.95 lb) |
| Operating Temperature: | 0 to 40° C (32 to 104° F) |
| Operating Humidity: | 10 to 90% RH |
| Networking Interface: | (1) 10/100 RJ45 Ethernet |
| Mounting: | Yes, 1U High |
| Powering | |
| Power Supply: | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Power Method: | 100-240VAC/50-60 Hz, Universal Input |
| Max.output power: | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| Certification & Approvals | |
| Certifications | CE, FCC, IC |
