Ubiquiti U Fiber Nano G (UF-NANO)
- Model: UF-NANO
- UPC: 81035402576
- EAN: 810354025761
GPON Optical Network Unit. The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.
Features:

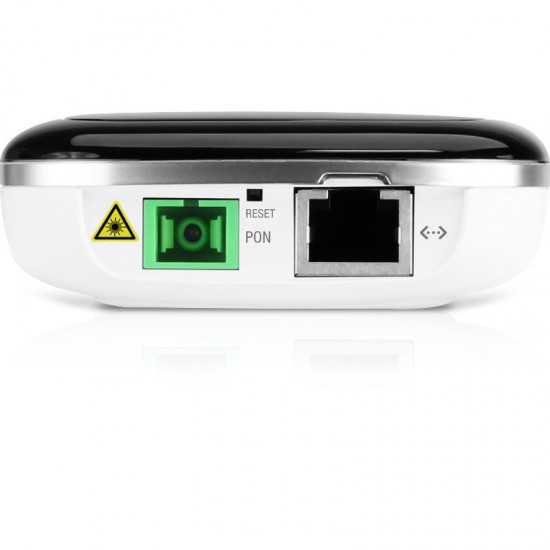

• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
• Display: Digital LED for Status Reporting
• Max. Power Consumption: 7W
• Power Method: 24V Passive PoE
• Mounting: Wall-Mountable (Indoor)

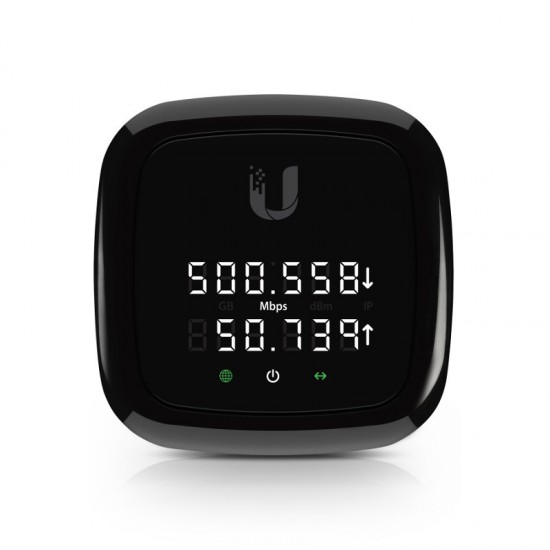

Status Display The easy-to-read display provides status information: IP address, signal strength, and current throughput. |  |
 | Power over Ethernet The Nano G is powered by 24V passive PoE – a single cable to carry both power and data. |
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and third-party OLT devices.
