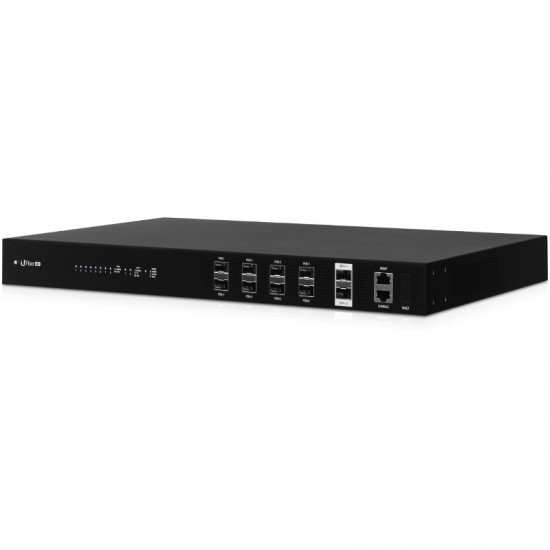

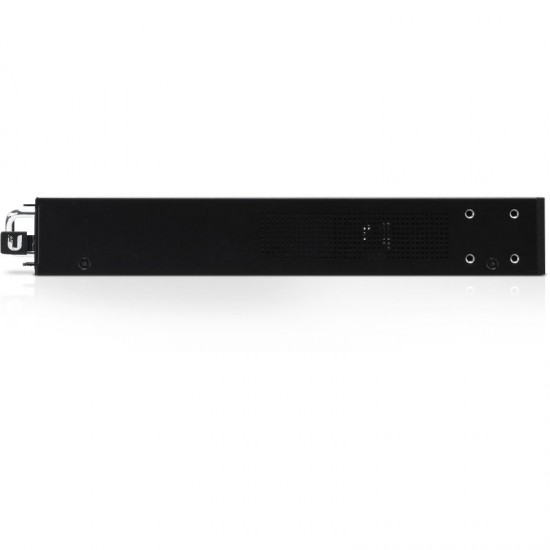

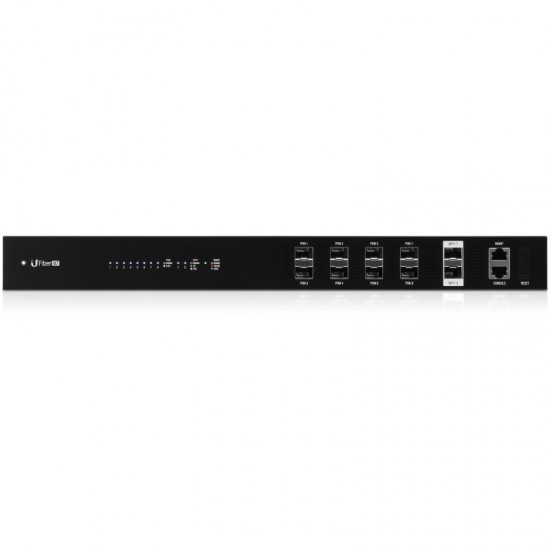

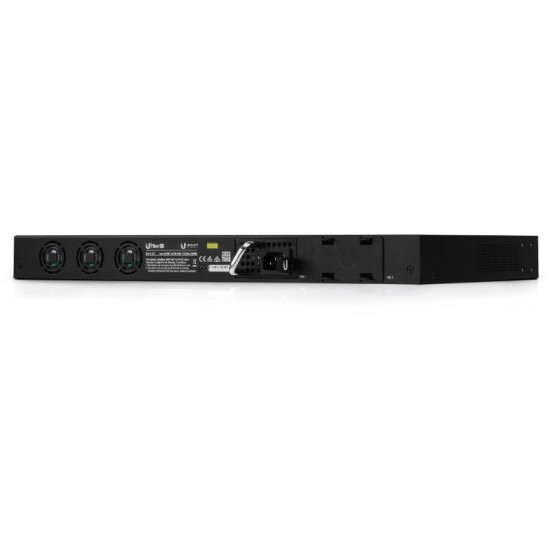

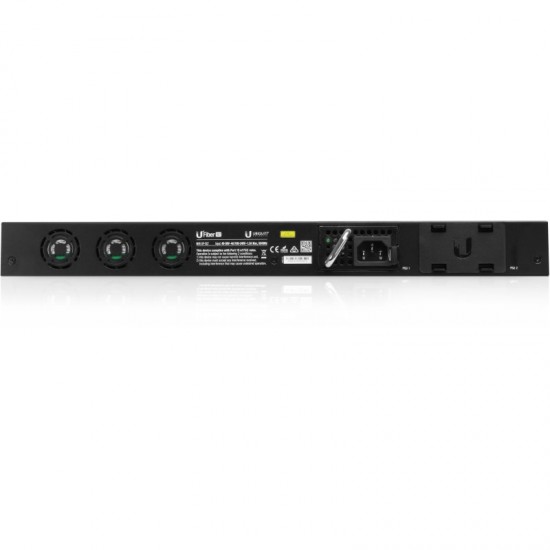

Ubiquiti uFiber OLT 8-port GPON Optical Line Terminal with eight GPON OLT SFP and two 10 Gb / s SFP +, supporting 2.4 Gb / s downstream and up to 1.2 Gb / s upstream up to 20 km. Features: 8 GPON ports. Supports up to 1024 clients (128 on the PON port). Up to 2.4 Gbit / s for transmission and up to 1.2 Gbit / s for reception. Supports GPON connections up to 20 km. Two 1G / 10G SFP + Ethernet ports. Convenient control properties level 2/3. FastEthernet management port, Serial console management port, Centralized management. Easily configure OLTs and manage multiple networks with UNMS ™ (Ubiquiti® Network Management System) software. With low power consumption, the OLT offers 2 modular power bays. The first compartment includes an AC / DC power supply, compartment 2 may contain an additional power module, or a backup AC / DC device, or a DC / DC power supply module.
Specifications
Memory:
512 MB DDR3, 512 MB NAND
Dimensions:
442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
Operating Humidity:
5 to 95% Noncondensing
Default IP:
192.168.1.1
Default name:
ubnt
Default password:
ubnt
Interface:
(8) GPON Ports, (2) 1G/10G SFP+ Ports, (1) RJ45 Ethernet Port, (1) RJ45 Serial Port
