- Model: UAP-AC-M-PRO-5
- UPC: 81788202055
- EAN: 817882020558
The UniFi ac Mesh pro 5 pack is a suite of five high-performance access points, one of the highlights of which is its support for Mesh technology. Unlike usual WiFi networks, Mesh does not have a single DHCP server, and all of its clients are at the same time, as it were, providers, providing the interconnection of remote, unconnected segments. Thus, connecting to two networks, the client becomes at the same time a bridge of their connection.
UniFi AC Mesh Pro - Simultaneous, dual-band, 3x3 MIMO technology, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps.

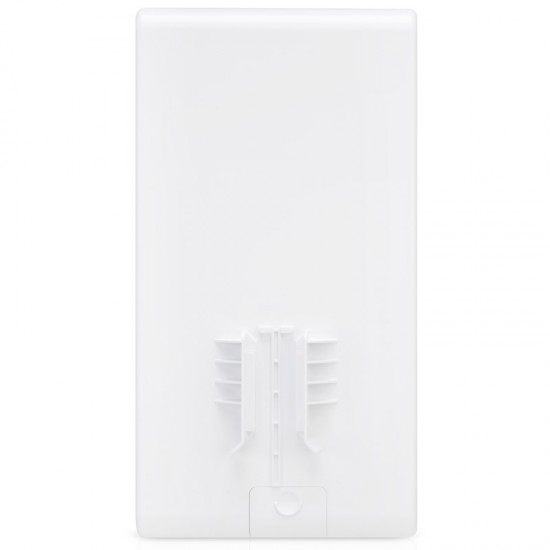

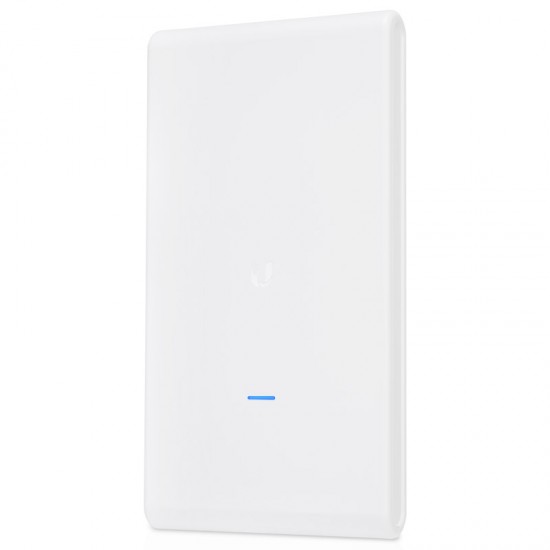

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3x3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.
* 5 packs do not come with PoE injectors.
Specifications | |
Buttons | Reset |
Weight: | 633 g (1.40 lb) |
Operating Temperature: | -40 to 70° C (-40 to 158° F) |
Operating Humidity: | 5 to 95% Noncondensing |
Antennas: | 3 Dualband antennas |
Mounting: | Wall/Pole (Pole Kit Included) |
Device dimensions: | 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37") |

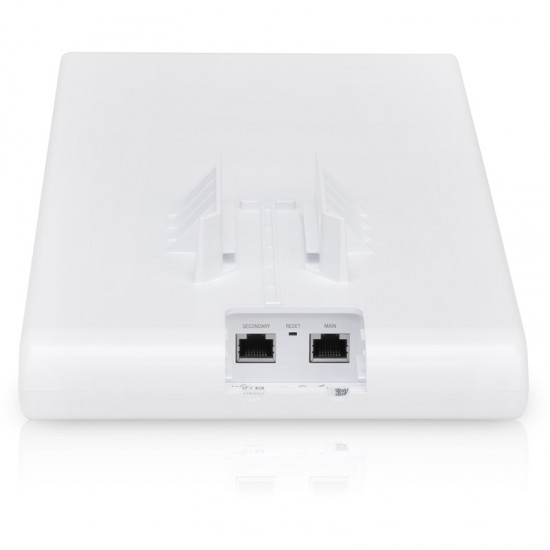

Interface: | (2) 10/100/1000 Ethernet Ports |
Wireless | |
BSSID | Up to Four per Radio |
Wireless Security: | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Software | |
Wi-Fi Standards: | 802.11a/b/g/n/ac |
Management | |
Advanced QoS | Per-User Rate Limiting |
Concurrent clients | 100+ |
Guest Traffic Isolation | Supported |
VLAN | 802.1Q |
WMM | Voice, Video, Best Effort, and Background |
Powering | |
Max TX Power | 22 dBm |
Power Save | Supported |
Power Supply: | PoE Injector 48VDC -0.5A Gigabit |
Power Method: | 802.3af PoE |
Max power consumption: | 9W |
Certification & Approvals | |
Certifications | CE, FCC, IC |
