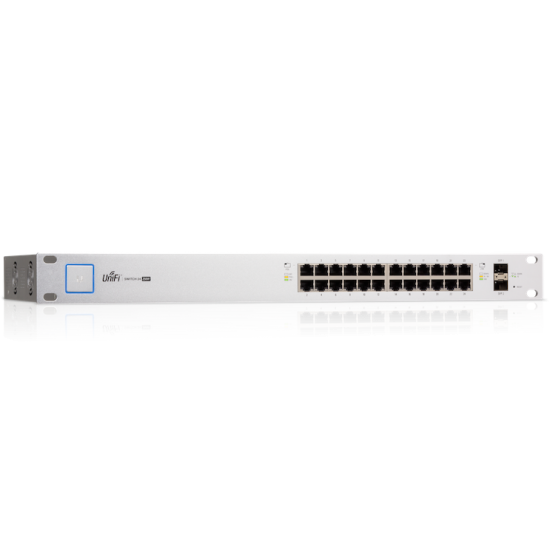

Ubiquiti UniFi Switch 24 250W (US-24-250W)

UniFi Switch US-24-250W is 24-Port, Managed PoE+ Gigabit switch with 250W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The UniFi Switch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

As a part of the Ubiquiti reliable switch series the US-24-250W device provides high efficiency, PoE+ support and intelligent technology for expanding networks. This is a basic UniFi Switching&Routing solution. Its advanced management system is distinguished by simple use. A perfect price to quality ratio makes it a common user's choice.

The Ubiquiti US-24-250W switch is equipped with 24 Gigabit Ethernet ports and 2 SFP ports and is fully manageable. It supports IEEE 802.3af and IEEE 802.3at communication standards. It provides 26 Gbit/s throughput and 52 Gbit/s switching capacity. The model is intended for rack installation. It is CE, FCC and IC certified. Its maximum power consumption is 250 W. The switch's solid construction allows it to work at temperatures ranging from -5 to 40 degrees Celsius.

• Features:
  • (24) Gigabit RJ45 ports
  • (2) SFP ports
  • (1) Serial console port (reserved for future use)
  • Total, non-blocking throughput: 26Gbps
  • Switching capacity: 52Gbps
  • Forwarding rate: 38.69Mpps
  • Maximum power consumption: 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable
  • Max power consumption: 250W


Comparison

	US-24-250W	US-24-500W	US-48-500W	US-48-750W
Total Non-Blocking Throughput	26 Gbps	26 Gbps	70 Gbps	70 Gbps
SFP+ Ports	N/A	N/A	2	2
SFP Ports	2	2	2	2
Max. Power Consumption	250W	500W	500W	750W
