UniFi® Access Hub is an intelligent IP networked single door controller, a part of UniFi Access solution.

The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.

Features:

• - Powered by 802.3bt (PoE++) switch

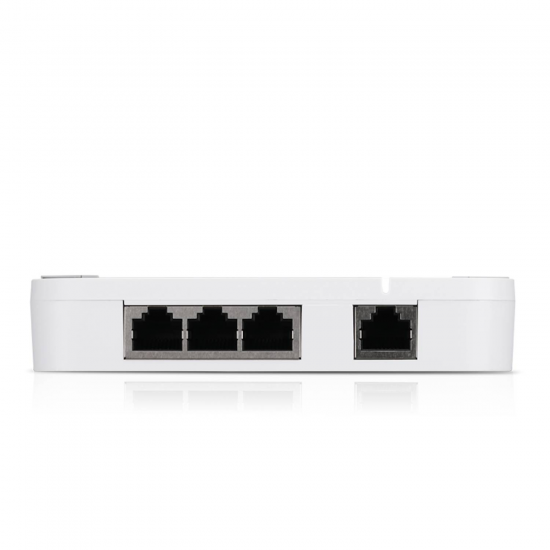

• - Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera

• - 12V powered and dry relays compatible with most locks

• - Four inputs for motion sensors, request-to-exit devices and door position switch

• - Managed with UniFi Access Controller in UDM-Pro

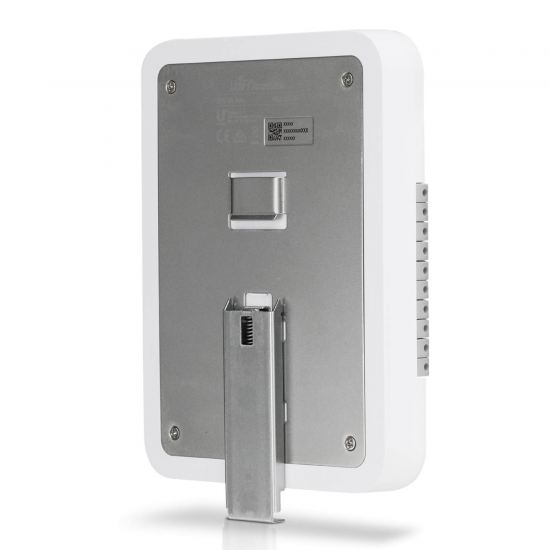

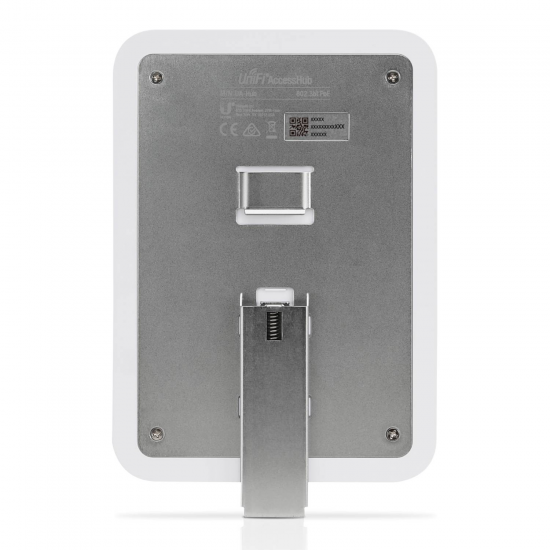

• - DIN-rail mounting


Note: UniFi Dream Machine Pro is required to run UniFi Access.

Peripherals

Sample UniFi Access Diagram

UA-Hub

DIN Rail

Self-Tapping Screws (Qty. 2)

Screw Anchors (Qty. 2)

Installation Requirements

• Phillips screwdriver
• Ethernet cables, CAT5e or better
• Copper wire, 18 AWG to 22 AWG
• Drill Kit
• DIN Rail
• Wire Ferrule Terminal (Recommended)

Sample Wiring Topology

 Door Position Switch

 Externally Powered Door Opener

 Magnetic Lock

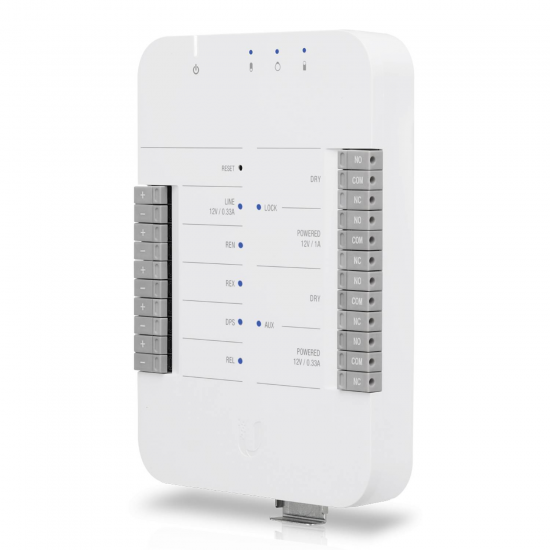

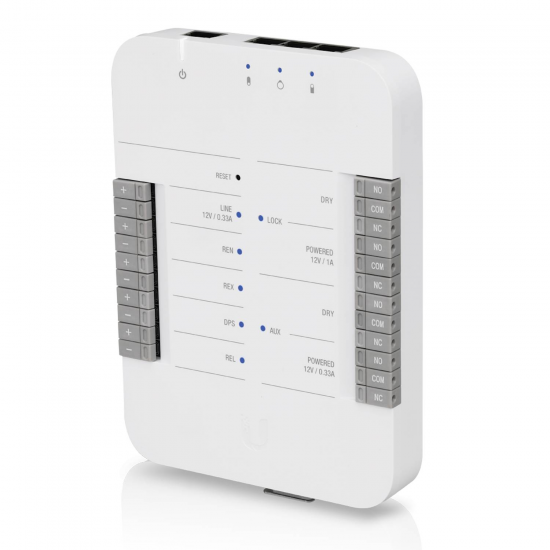

Hardware Overview

Power (In) LED
Steady Blue	Adopted/device is ready
Steady White	Pending adoption
Alternating White/Blue	Upgrading firmware
PoE (Out) LEDs
Off	Not connected or no data link
Steady Blue	Connected and data link on
12V Line Output LED
Off	Not connected
Steady Blue	Effectively connected*
12V Line Output Relays
Line voltage with 12VDC power
Input Relays
REN	Request to enter
REX	Request to exit
DPS	Door position switch
REL	Specifications Buttons Terminal Blocks, Reset LEDs: (1) System, (3) PoE Out, (4) Input (2) Output Relays, (1) 12VDC Out Mounting: DIN Rail Dimensions: 190 x 126 x 33 mm (7.48 x 4.96 x 1.29") Weight: 457 g (16.12 oz) Operating Temperature: 0 to 40° C (32 to 104° F) Operating Humidity: 5 to 90% Non-Condensing Networking Interface: (4) 1 Gbps Ethernet Enclosure Characteristics: Plastic Enclosure with Metal Mount Plate Powering Power Save Lock: Output 12VDC, up to 1A Aux: Output 12VDC, up to 0.33A Line: Output 12VDC, up to 0.33A Power Method: 802.3bt Max power consumption: 40W Certification & Approvals Certifications CE, FCC, IC Related products Quickview Ubiquiti UniFi Access Reader Lite (UA-Lite) UniFi® Access Reader Lite is a modern NFC and Bluetooth reader, a part of the UniFi Access solution.The UniFi Access Reader Lite has been designed for.. 0.00 USD Buy Now Question Add to Wish List Add to compare Quickview Ubiquiti UniFi Access Card (UA-Card) UniFi® Access Card is a highly secure NFC smart card compatible with the UniFi Access system.The card data is encrypted with both AES-128 and with Uni.. 0.00 USD Buy Now Question Add to Wish List Add to compare Quickview Ubiquiti UniFi Access Reader Pro (UA-Pro) UniFi® Access Reader Pro is a premium NFC and Bluetooth reader with sharp touchscreen display and high-resolution camera, a part of the UniFi Access s.. 0.00 USD Buy Now Question Add to Wish List Add to compare Quickview Ubiquiti UniFi Protect G4 Doorbell (UVC-G4-DoorBell) UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.The camera features a high-quali.. 0.00 USD Buy Now Question Add to Wish List Add to compare Quickview Ubiquiti UniFi Access Starter Kit (UA-SK) Comprehensive starter kit with everything you need to set up a premium UniFi Access solution.UniFi Access Starter Kit contains everything you need to .. 0.00 USD Buy Now Question Add to Wish List Add to compare
