  • Model: UVC-G4-DoorBell

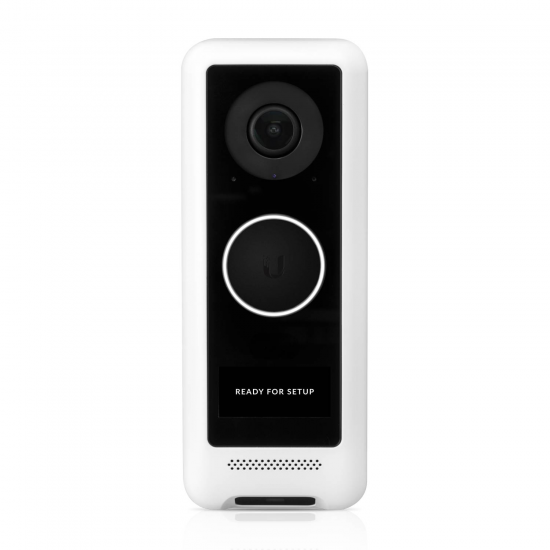

    UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.

    The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600x1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.


    Features:

    • - 1600x1200 (2MP) HD stream with night vision
    • - Integrated entrance lighting
    • - Real-time two-way audio with echo cancellation
    • - Built-in display
    • - Dual-band 802.11ac Wi-Fi
    • - PIR motion detection sensor
    • - Weather-resistant
    • - UniFi Protect integration

    Note: UniFI Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine PRO or UniFi Protect Network Video Recorder

     Specifications Datasheet Installation Guide

Specifications
Buttons Factory Reset
Flash Memory Support 256 MB
Management: UniFi Protect
Memory: 512 MB

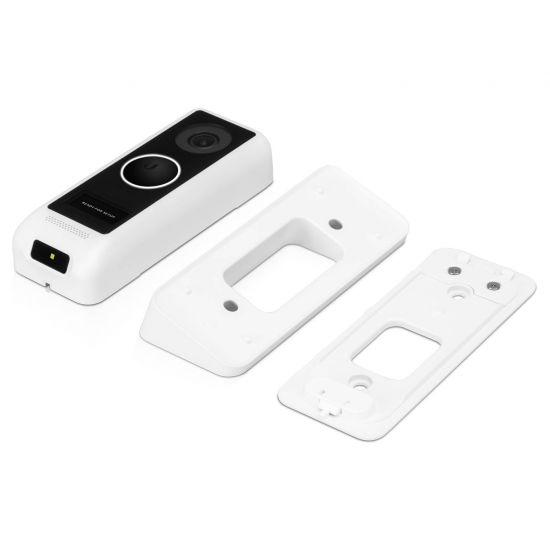

Mounting: Flat Wall/20° Wedge (Kits Included)
Dimensions: 118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02")
Weight: Without Mount: 130 g (4.59 oz) With Flat Wall Mount: 178 g (6.28 oz) With 20° Wedge Mount: 200 g (7.05 oz)
Operating Temperature: -10 to 40º C (14 to 104º F)
Operating Humidity: 0 to 90% Noncondensing
Processor Specs: Ambarella Advanced Image Processing SoC
Networking Interface: 802.11 ac Wi-Fi
Enclosure Characteristics: Polycarbonate
Software
Controller Software UniFi Protect
Mobile Apps UniFi Protect iOS and Android
Audio
Microphone Yes (Can be Disabled in Software)
Speaker Yes
Video
Maximum Frame Rate 30 FPS
Resolution 1600 x 1200 (4:3)
Video Compression H.264
Powering
Max power consumption: 12VA
Certification & Approvals
Certifications FCC, IC, CE
