- Model: UAP-AC-M
- UPC: 81035402579
- EAN: 810354025792

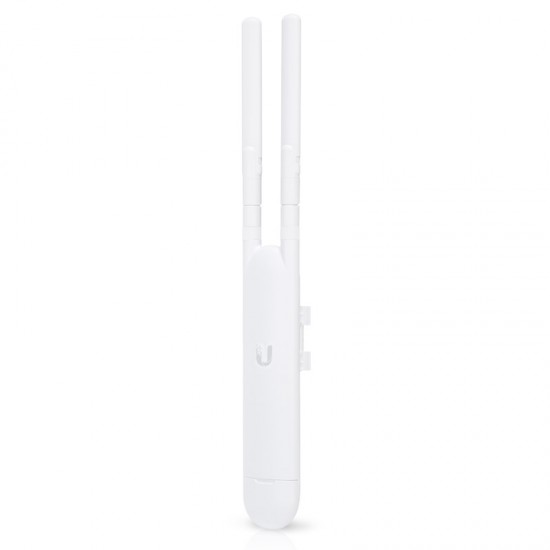

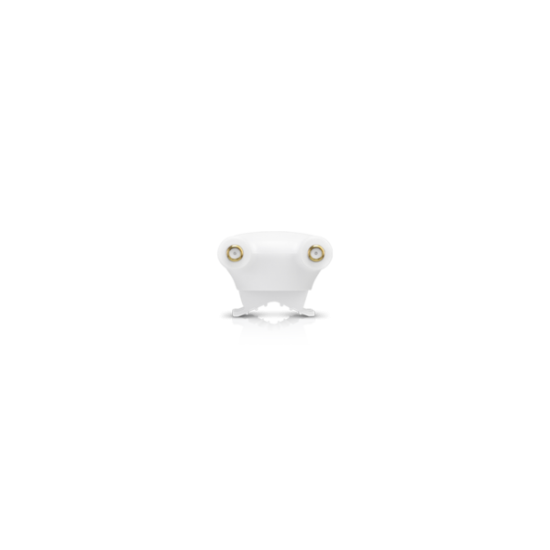

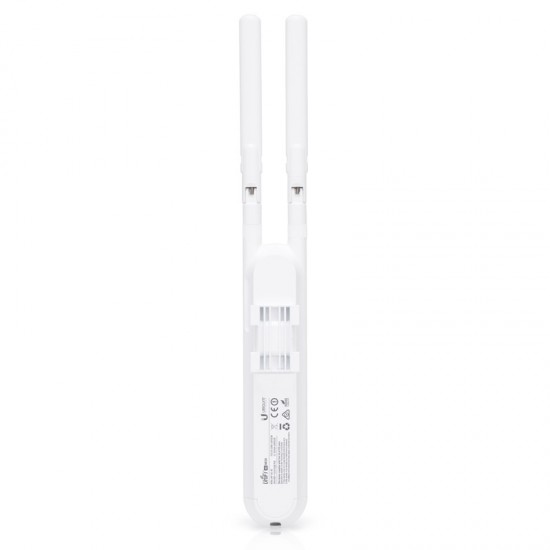

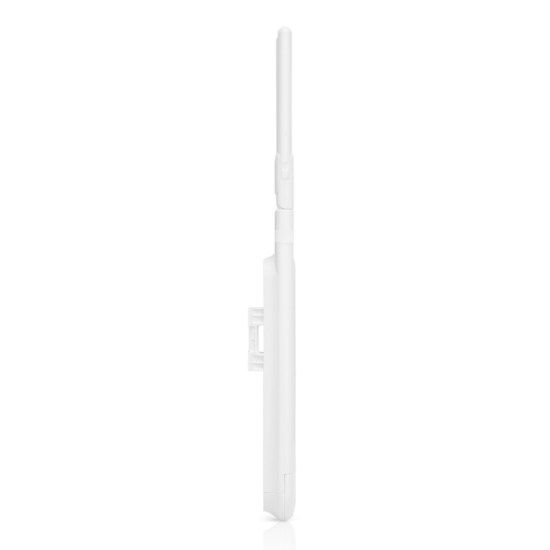

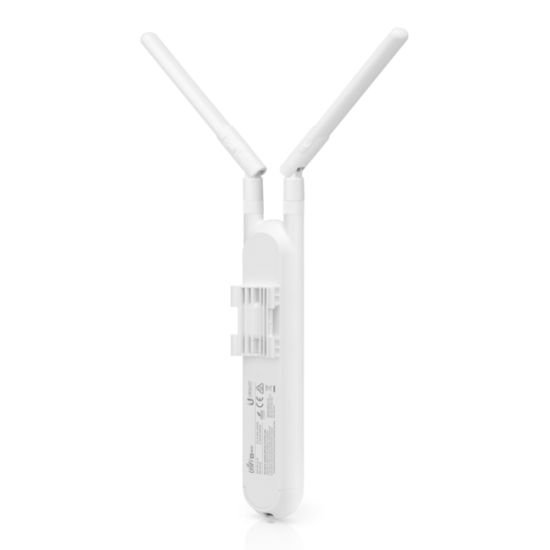

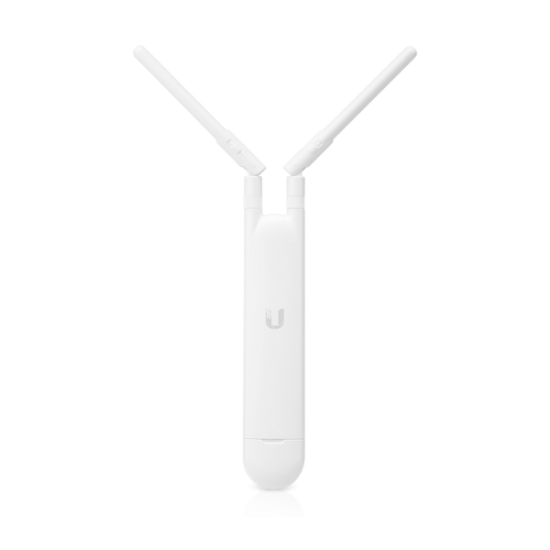

UniFi AC Mesh is a High-performance 802.11ac 2x2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.
Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.
* 5 packs do not come with PoE injectors.
Welcome to UniFi Mesh Technology!
Expand the boundaries of WiFi
UniFi is building a scalable, end-to-end system of devices spanning many locations around the world, all controlled by a single interface accessed over the Internet or LAN.
Specifications | |
Antenna | 2 Dualband antennas |
Buttons | Reset |

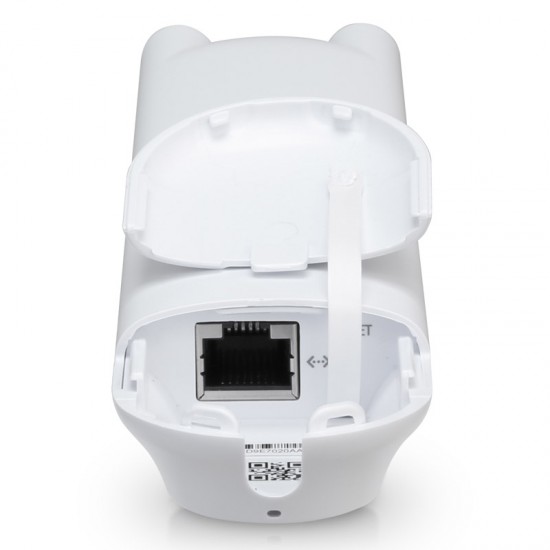

Ports | (1) 10/100/1000 Ethernet |
Operating Temperature: | -30 to 70° C (-22 to 158° F) |
Networking Interface: | 2x2 WiFi dual band / Ethernet Gigabit |
Mounting: | Wall/Pole/Fast-Mount (Kits Included) |
Encryption: | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Supported OS: | Linux, Mac OS X, or Microsoft Windows 7/8/10 |
Device dimensions: | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
Software | |
Wi-Fi Standards: | 802.11a/b/g/n/ac |
Management | |
Advanced QoS | Per-User Rate Limiting |
Concurrent Clients | 100+ |
Guest Traffic Isolation | Supported |
VLAN | 802.1Q |
Powering | |
Max TX Power | 20 dBm |
Power Supply: | 24V, 0.5A Gigabit PoE Adapter* |
Power Method: | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
Max power consumption: | 8.5W |
Certification & Approvals | |
Certifications | CE, FCC, IC |
