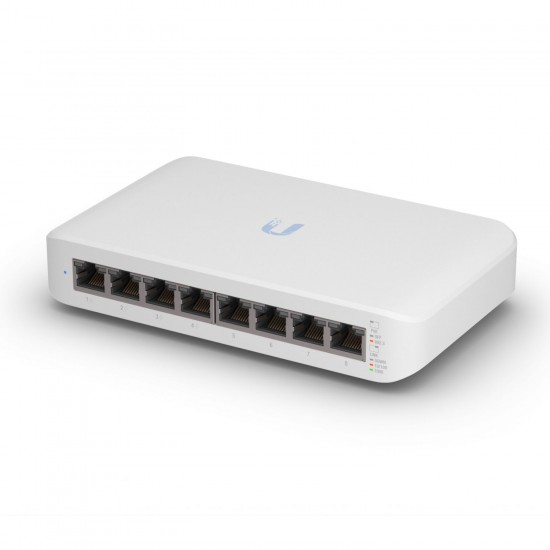

Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-POE)
- Model: USW-Lite-8-POE

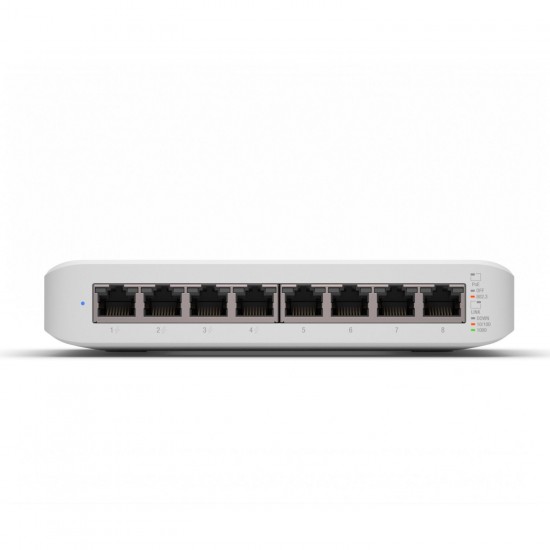

- - (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
- - Managed by UniFi Controller (5.13.10 or later)
- - External 60W power adapter

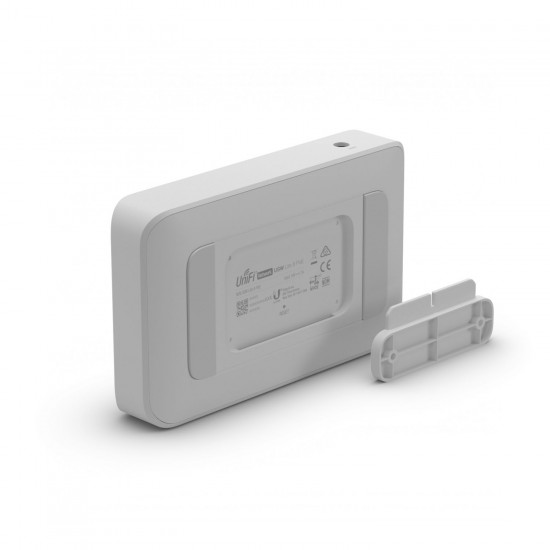

- - Wall-mountable (Kit included)
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
Specifications | |
LEDs: | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
Management: | EthernetIn-Band |
Supported Input Voltage Range | DC 50V to 57V |
Dimensions: | 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25") |
Weight: | 450 g (15.87 oz) |
Operating Temperature: | -15 to 40° C (5 to 104° F) |
Operating Humidity: | 10 - 90% Noncondensing |
Networking Interface: | (8) 10/100/1000 Mbps Ethernet RJ45 Ports |
Powering | |
PoE | IEEE 802.3af/at |
PoE Interfaces | (4) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-) |
Power Supply: | External 54V/60W Power Adapter |
Power Method: | 54VDC, 1.1A Power Adapter |
Max power consumption: | 8W |
Certification & Approvals | |
Certifications | CE, FCC, IC |
